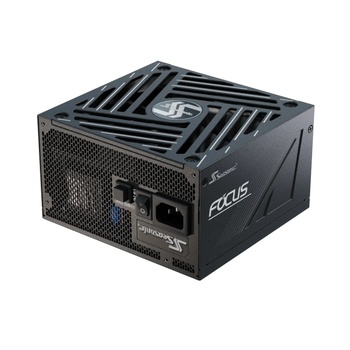

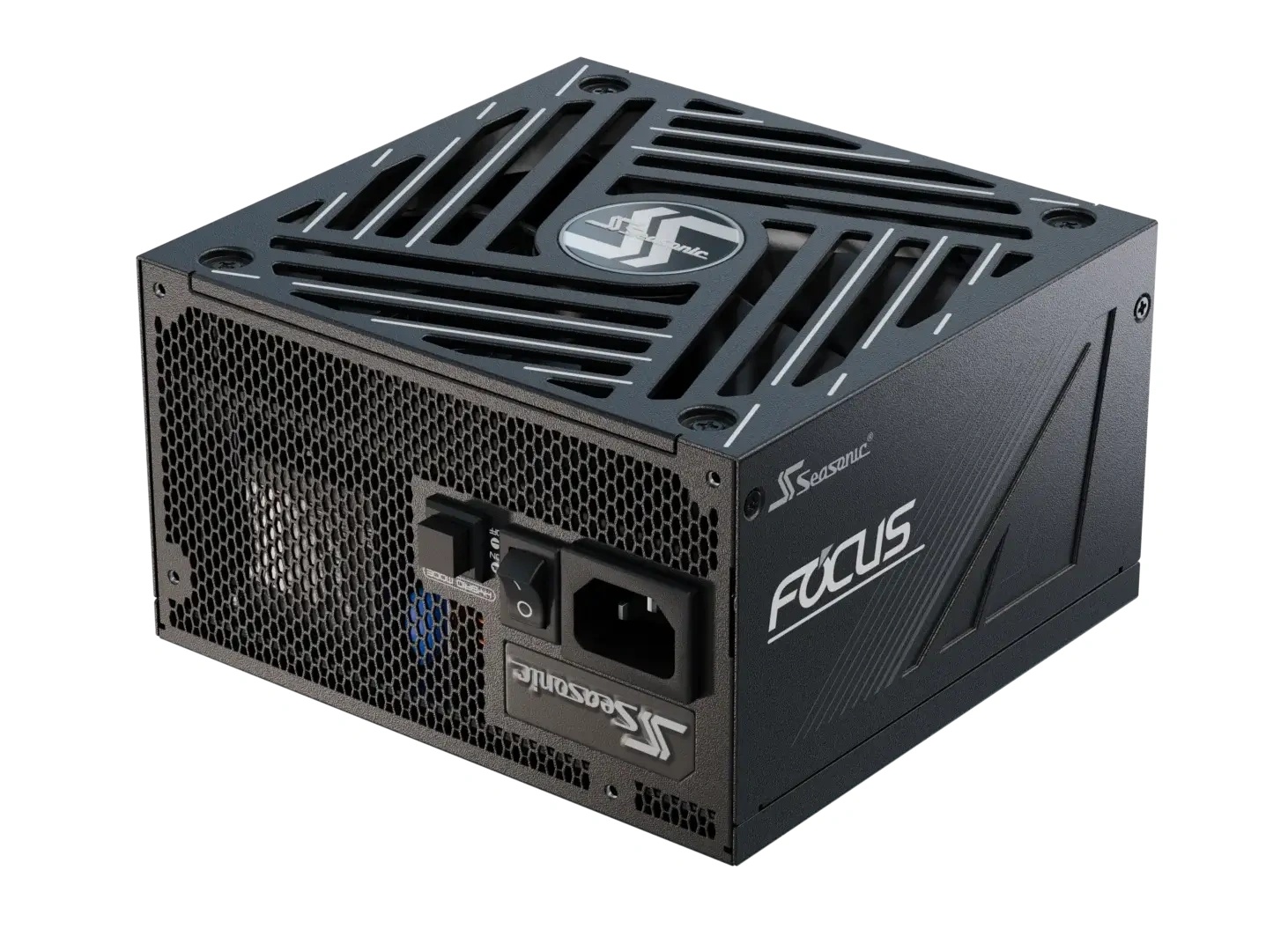

Seasonic Focus GX-750 (2024) 750W 80 PLUS Gold (SS-PS-SSR-750-FX4)

FOCUS GX ATX 3

Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series has been upgraded to comply with the ATX 3.1 and PCIe 5.1 standards. It offers a complete range of power supplies from 750W to 1000W, all within a compact 140mm depth. Each unit features a 135mm fan, a 12V-2×6 cable, and our new OptiSink technology. These units are designed to be perfect allies in powering the latest high-power graphics cards and processors available on the market.





Digital Hybrid Fan Control

The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Digital Hybrid Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.







New Seasonic OptiSink Design



The overall quality and reliability of the FOCUS v4 Series has been greatly improved by a brand-new PCB (Printed Circuit Board) layout and the implementation of automated surface mount technology during production, which minimizes human production errors.



By using a redesigned PCB combined with smaller MOSFET and heat sink components, the internal space within the power supply was increased to enhance heat dissipation and airflow to result in better component cooling.







The eightfold increase in heat dissipation keeps the internals of the power supply cooler, eventually leading to improved product quality, long-term reliability, and more efficient operation.



The redesigned layout of the power supply components and its improved thermal performance creates versatility and allows the power supply to be safely installed in any orientation.



The OptiSink design is an eco-friendly solution that not only lowers the costs of material usage and production but also leads to energy savings in the long run.







Specifications:T echnical Specifications80PLUS® GoldCybenetics Efficiency Level GoldCybenetics Noise Level A-Form Factor ATX/EPSFan Information Fan Size 135 mmFan Control Digital Hybrid Fan ControlFan Bearing Fluid Dynamic BearingLife Expectancy 50,000 hours at 40 °C, 15 % - 65 % RHCable Information Modularity Fully ModularCable type Individual Black Cables with Braided PatternElectrical Features Operating Temperature 0 - 50 °CMTBF @ 25 °C, excl. fan 100,000 hoursAC Input Full Range
