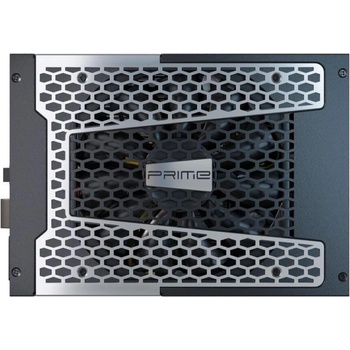

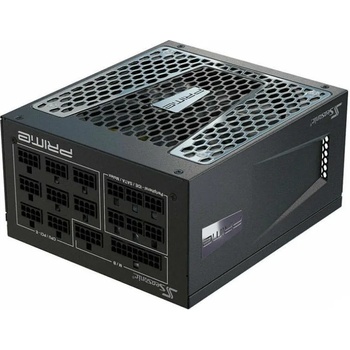

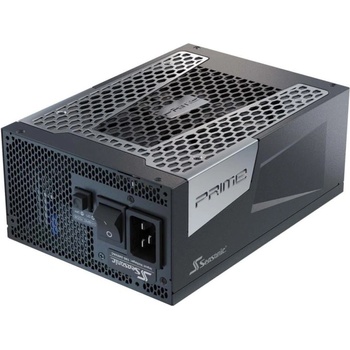

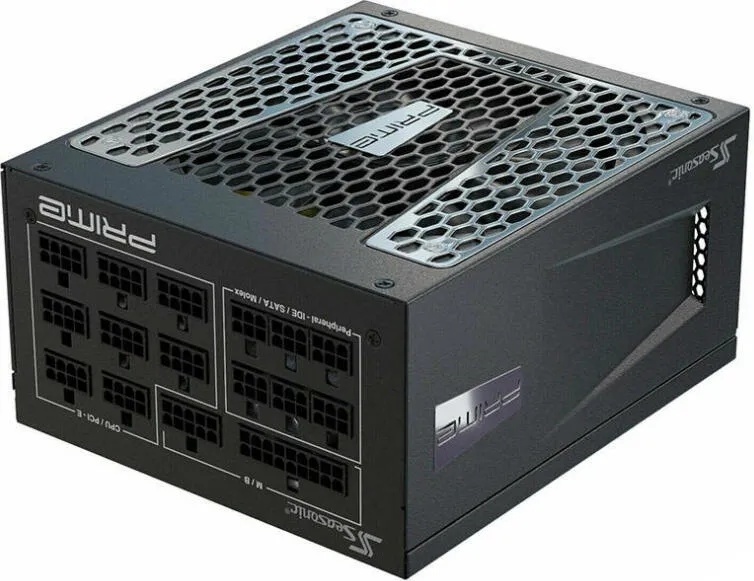

Seasonic PRIME TX 1300W 80 PLUS Titanium (SS-PS-SSR-1300TR)

Micro Tolerance Load Regulation

Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

Premium Hybrid Fan control

Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.

Note: The Premium Hybrid Fan Control chart is provided for reference only. The shape of the curve can look different due to the variability in ambient temperature, system set-up, air flow, and other unpredictable factors.

Fluid Dynamic Fan Bearing

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

How it works

When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.



Технически характеристики

МОЩНОСТ НА ЗАХРАНВАЩ БЛОК
1300 W

ФОРМАТ
ATX 3.0

ТИП
Active PFC

СЕРТИФИКАТИ
80PLUS TITANIUM

ЕФЕКТИВНОСТ
94%

МОДУЛЕН ЗАХРАНВАЩ БЛОК
Да

КОНЕКТОРИ
PCI-E Gen5 12VHPWR x 2

PCI-Express 6+2 pin x 8

Molex x 3

SATA x 16

SATA 3.3 V x 2

4+4 Pin ATX/EPS x 3

20+4 Pin ATX x 1

ОХЛАЖДАНЕ
135 mm вентилатор

ЦВЯТ
Черен

РАЗМЕРИ
210 x 150 x 86 mm ( L x W x H)

ДРУГИ
BONUS INSIDE: 65W Seasonic USB-C GaN Fast Charger

Fan Control: Premium Hybrid Fan Control

Cable type: Flat black cables

Protection: OPP, OVP, UVP, OCP, OTP, SCP

Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
