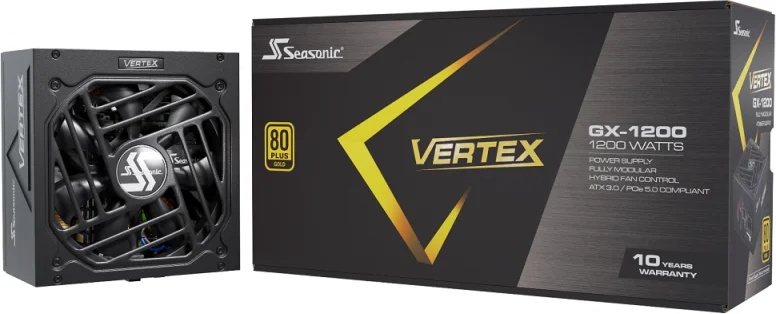

Seasonic VERTEX ATX 3.1 GX-1200 80 PLUS Gold

PSU SEASONIC VERTEX GX-1200

feature summary

• Super-High Efficiency, 80 PLUS® Gold Certified


• Fully Modular


• ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)


• Top-Quality 135 mm Fluid Dynamic Bearing Fan

• Premium Hybrid Fan Control


• Tight Voltage Regulation (12 V, 5 V and 3.3 V) [± 3 %]


• Gold Plated High Current Terminal (MB, CPU and PCIe)

The new VERTEX Series units will provide 1200 W / 1000 W / 850 W and 750 Watts of true power in both Platinum and Gold levels of efficiency, with all the best features you can expect from a Seasonic power supply:

Full modularity for the best cable management options:

- Added 12VHPWR cable to comply with the new graphic cards

- 135mm Fluid Dynamic Bearing (FDB) fan for quiet operation

- Seasonic Hybrid Silent Fan Control for optimal cooling

- Complete protection features: OPP / OVP / UVP / SCP / OCP / OTP

The exact time to market depends on your location. Please contact your local Seasonic Representative to obtain more information.



80 PLUS ® Gold

The Vertex GX Series achieves 80 PLUS ® Gold certification with its 90 % efficiency at 50 % system load.



ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)

Seasonic’s latest Vertex Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.



Premium Hybrid Fan control

Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.



Fluid Dynamic Fan Bearing

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

How it works

When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.



Vertex GX-1200

Technical Specifications

80PLUS ®
Gold

Cybenetics Efficiency Level
TBA

Cybenetics Noise Level
TBA

Form Factor
Intel ATX 12 V

Dimensions
160 mm (L) x 150 mm (W) x 86 mm (H)

Fan Information
Fan Size
135 mm

Fan Control
Premium Hybrid Fan Control

Fan Bearing
Fluid Dynamic Bearing

Life Expectancy
50,000 hours at 40 °C, 15 % - 65 % RH

Cable Information
Modularity
Fully Modular

Cable type
Flat black cables

Electrical Features
Operating Temperature
0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)

MTBF @ 25 °C, excl. fan
150,000 hours

AC Input
Full Range

Protection
OPP, OVP, UVP, OCP, OTP, SCP

Safety and Environmental
Safety and EMC
cTUVus, TUV, CB, CCC, BSMI, EAC, CE

Environmental Compliance
Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Power Output

AC Input
Voltage: 100 V - 240 V

Current: 15 - 7.5 A

Frequency: 50 Hz - 60 Hz

DC Output
Rail
+3.3 V
+5 V
+12 V
-12 V
+5 VSB

Maximum Power
25 A
25 A
100 A
0.3 A
3 A

125 W
1200 W
3.6 W
15 W

Total continuous power
1200 W
