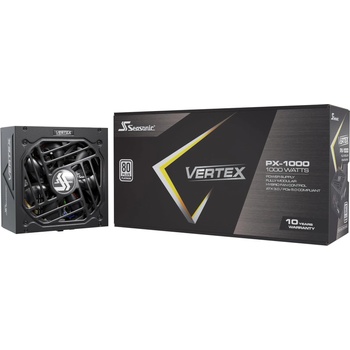

Seasonic VERTEX PX-1000 1000W 80 PLUS Platinum (VERTEX PX 1000)

The new VERTEX Series units will provide 1200 W / 1000 W / 850 W and 750 Watts of true power in both Platinum and Gold levels of efficiency, with all the best features you can expect from a Seasonic power supply:
- Fully compatible with ATX 3.0 and PCIe 5.0 standards
- Full modularity for the best cable management options:
- Added 12VHPWR cable to comply with the new graphic cards
- 135mm Fluid Dynamic Bearing (FDB) fan for quiet operation
- Seasonic Hybrid Silent Fan Control for optimal cooling
- Complete protection features: OPP / OVP / UVP / SCP / OCP / OTP





80 PLUS® Platinum

The Vertex PX Series achieves 80 PLUS® Platinum certification with its 92 % efficiency at 50 % system load.





Fluid Dynamic Fan Bearing

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.



Specifications:Vertex PX-1000Technical Specifications80PLUS® PlatinumCybenetics Efficiency Level TBACybenetics Noise Level TBAForm Factor Intel ATX 12 VDimensions 160 mm (L) x 150 mm (W) x 86 mm (H)Fan Information Fan Size 135 mmFan Control Digital Fan ControlFan Bearing Fluid Dynamic BearingLife Expectancy 50,000 hours at 40 °C, 15 % - 65 % RHCable Information Modularity Fully ModularCable type Cables with Braided PatternElectrical Features Operating Temperature 0 - 50 °CMTBF @ 25 °C, excl. fan 100,000 hoursAC Input Full RangeProtection OPP, OVP, UVP, OCP, OTP, SCPSafety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CEEnvironmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACHPower OutputAC Input Voltage: 100 V - 240 VCurrent: 13 - 6.5 AFrequency: 50 Hz - 60 HzDC Output Rail +3.3 V +5 V +12 V -12 V +5 VSBMaximum Power 25 A 25 A 83 A 0.3 A 3 A125 W 996 W 3.6 W 15 WTotal continuous power 1000 W
