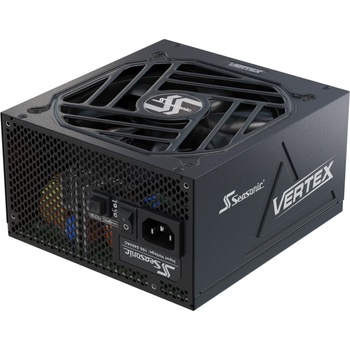

Seasonic Vertex PX 1200W 80 PLUS Platinum

Technical Specifications

80PLUS®
Platinum

Cybenetics Efficiency Level
TBA

Cybenetics Noise Level
TBA

Form Factor
Intel ATX 12 V

Dimensions
160 mm (L) x 150 mm (W) x 86 mm (H)

Fan Information
Fan Size
135 mm

Fan Control
Digital Fan Control

Fan Bearing
Fluid Dynamic Bearing

Life Expectancy
50,000 hours at 40 °C, 15 % - 65 % RH

Cable Information
Modularity
Fully Modular

Cable type
Flat black cables

Electrical Features
Operating Temperature
0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)

MTBF @ 25 °C, excl. fan
100,000 hours

AC Input
Full Range

Protection
OPP, OVP, UVP, OCP, OTP, SCP

Safety and Environmental
Safety and EMC
cTUVus, TUV, CB, CCC, BSMI, EAC, CE

Environmental Compliance
Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Warranty
12 Years




Cable type
Connector(s) per cable
Total Length (mm)
Number(s) of cable(s) included

MB (24/20 pins)
1
610
1

CPU (8/4 pins)
1
650
2

PCIe (8/6 pins)
2
750
0

PCIe (8/6 pins)
1
750
3

SATA
4
950
4

SATA
4
860
0

SATA
4
760
0

SATA
2
700
0

SATA
2
570
0

SATA
2
470
0

SATA 3.3
2
550
1

Molex
3
690
1

Molex
2
470
0

Molex to SATA 3.3 Adapter
2
300
0

Molex to FDD Adapter
1
101
0

12VHPWR
1 (16 Pins to 16 Pins)
750
1

Гаранция: 144 месеца
Официална страница на продукта:https://seasonic. com/vertex-px
