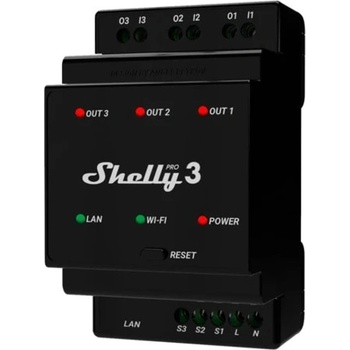

Shelly Pro 3

Shelly PRO 3

Lights automation of the common spaces

Reduce unnecessary monthly costs with Shelly smart lighting solutions. Shelly Pro 3 can control three separate light circuits and give you full control over common spaces such as halls, garages, and storage rooms, which usually have their lights constantly switched on. Now you can make them energy efficient using Shelly Pro 3's built-in scheduling and scripting functionalities. To fully automate your premises, add Shelly Motion2 to switch on the lights automatically when someone enters, and its pre-set smart timer will switch the lights off once the premises are empty.

Common area temperature control

In guest rooms, reception areas, restaurants, or meeting rooms, keeping the temperature at a comfortable level is a key contributor to the comfort of both guests and employees. However, it is hard to maintain an optimal temperature without any energy going to waste. The cooling/heating systems in the hotels should follow the dynamic changes in the temperatures during the different seasons. Use Shelly Pro 3 to control the motorized valves in your water distribution box and control heating, cooling, or any other motorized valve in your facility. Smart schedules combined with temperature & humidity sensors and precise weather data will provide dynamic control of the heating system for an optimal indoor climate.

LAN, Wi-Fi, and Bluetooth connection
3 outputs, 16A each. Total device maximum of 48A
Dry contacts
Overpower and overvoltage protection of the load.
3-phase control
Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants

POWER
Power supply AC: 110-240V, 50/60Hz
Maximum load: up to 16A per channel with up to 48A for the whole device
Channels: 3 Channel

SPECIAL FUNCTIONS
Roller shutter mode: No
Device temperature protection: Yes
Overload protection: No
Power measurement: No

FEATURES
HTTP/HTTPS webhooks: Yes
Custom scripts (mJs): Yes
Operational temperature: -20 °C to 40 °C / -5 °F to 105 °F
Device power consumption: < 3 W
Intelligent On/Off: Yes
Local and remote control: Yes
Sunrise/Sunset: Yes
Weekly Schedule: Yes
UL Listed option: No

CONNECTIVITY
Wireless: Yes
Max RF output power: 13.35 dBm
Wi-Fi Protocol: 802.11 b/g/n
Wi-Fi Radio frequency    2412 – 2472 МHz; (Max. 2495 MHz)
Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth: Yes
Ethernet: Yes

DIMENSIONS
Size: 96x53x59 mm / 3.78×2.01×2.32 inch
