Shure BLX14E/CVL-K3E

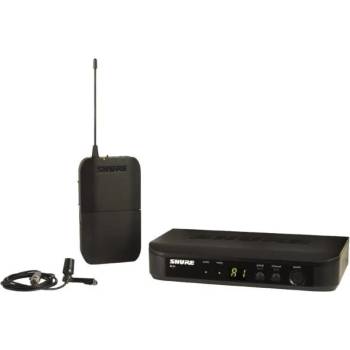

BLX14E/CVL - безжична лавалиерна система с CVL (тип брошка) Включва:CVL lavalier microphone, BLX1 bodypack transmitter, BLX4 single-channel receiver, power supply, 2 AA batteries

BLX1     Up to 14 hours of continuous use with 2 AA batteries. 300 ft (100 m) transmission radius.
BLX4     Single channel wireless receiver with microprocessor-controlled internal antenna diversity.
CVL     Condenser lavalier microphone for use with PG Wireless Systems. Discreet, miniature clip-on lavalier microphone for speeches and presentations
Condenser cartridge with cardioid polar pattern

CVL LAVALIER MICROPHONE
Electret condenser microphone
Cardioid polar pattern
Clothing clip for secure placement
Acoustic windscreen minimizes wind noise in outdoor applications

SYSTEM TECHNICAL SPECIFICATIONS
Compatible systems per frequency band (up to): 12
Selectable frequencies: 150
Auto Setup Features: QuickScan : Finds group with most compatible frequencies and sets to best frequency
Audio Reference Companding: No
Included Antennas: BLX4, BLX88: Internal, BLX4R: Detachable
Antenna Options: No
Receiver Network Ability: No
PC Control: No
Rack Hardware: URT2 (not included), Rack mount brackets (only with rackable/BLX-R Sets)
Case: No
Transmitter Display: LED
Receiver Display: BLX4, BLX88: LED, BLX4R: High-resolution LCD screen
Battery, Endurance: 2AA, up to 14h
Environment: Small to medium stages
FURTHER TECHNICAL SPECS
Operating Range: 91 m ( line of sight - actual range depends on RF signal absorption, reflection and interference)
Available Frequencies: Between 524–865 MHz (available frequencies depend on applicable regulations in country where system used)
Audio Range: 50–15,000 Hz (dependent on microphone type)
Transmitter RF Output Power: 10 mW, typical (varies by region)
Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")
Battery Life: Up to 14 hours
Dynamic Range: 100 dB A-weighted
System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range: -18°C (0°F) – +50°C (122°F)
Power Requirements: BLX1, BLX2: 2 AA alkaline or rechargeable batteries
BLX4: 12–18 V DC at 150 mA, supplied by external power supply
COMPONENT SPECIFICATIONS:
BLX4 RECEIVER
Output Impedance:
- XLR connector 200
- 6.35 mm (1/4") connector: 50
Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone:
- XLR connector –27 dBV (into 100 k load)
- 6.35 mm (1/4") connector –13 dBV (into 100 k load)
RF Sensitivity: 105 dBm for 12 dB SINAD, typical
Image Rejection: >50 dB, typical
Dimensions: 40 mm X 188 mm X 103 mm (H x W x D)
Weight: 241 g
Housing: Molded ABS
Power Requirements: 12–15 V DC @ 160 mA, supplied by external power supply (tip positive)
BLX1 BODYPACK TRANSMITTER
Audio Input Level:
- gain max: -16 dBV maximum
- gain min (0 dB): +10 dBV maximum
Gain Adjustment Range: 26 dB
Input Impedance: 1 M
RF Transmitter Output: 10 mW, typical, varies by region
Dimensions: 110 mm x 64 mm x 21 mm (H x W x D)
Weight: 75 g, without batteries
Housing: Molded ABS
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
Battery Life: up to 14 hours (alkaline)
