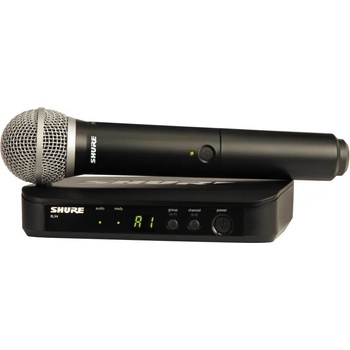

Shure BLX24RE/PG58

BLX24RE/PG58 - безжична микрофонна система с ресивър за монтиране в рак и PG58 микрофонна капсула.

Включва: 1 x BLX4R Receiver 1 x BLX2 PG58-Handheld Transmitter

Entry point to professional Shure quality, ruggedness and sound.

PG58 VOCAL MICROPHONE
Tailored frequency response is smooth and extended. Tuned specifically for vocal applications.
Cardioid polar pattern picks up the most sound from in front of the microphone and some sound from the sides. Less susceptible to feedback in high volume settings.
Dynamic cartridge has a simple, rugged coil. Handles extreme volume levels without distortion.
Cartridge includes a neodymium magnet for high output level.
Internal shock mount for reduced handling noise.
Durable metal construction.
On/off switch for onstage control.
Hardened steel mesh ball grille that resists wear and abuse.
Integral "pop" filter reduces explosive breath sounds and wind noise.
Includes 15ft. (4.57m) cable, break-resistant mic clip and storage bag.
BLX2 HANDHELD TRANSMITTER
Power and battery status LED
Adjustable gain control
Quick and easy frequency matching
AA batteries (included) provide up to 14 hours of continuous use
100 m (300 ft. ) operating range (line of sight)
RECEIVER BLX4R
One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
Up to 12 compatible systems per frequency band (region-dependent)
XLR and ¼ output connectors
Two-color audio status indicator LED
Green: Normal audio levels
Red: Excessive audio levels (overload/clipping)
Adjustable output level
Removable antennas for quick antenna distribution
LC Display with detailed RF and audio metering
Rack mount kit included
FURNISHED ACCESSORIES
RACK MOUNT BRACKET, part number: 53A8611
LONG RACK MOUNT BRACKET, part number: 53A8612
LINK BRACKET, part number: 53B8443
HARDWARE KIT, part number: 90AZ8100
Swivel adater, part number: 90F4046
Thread adapter, part number: 31B1856
2x, ANTENNA/BNC, 1/4 WAVE, part number: 95A8699
2x, ADAPTER, BULKHEAD, BNC, part number: 95A8994
BAG VINYL, ZIPPERED, part number: 95B2313
2x, CABLE, BNC, 22 in. , part number: 95K2035
Power supply PS23

SYSTEM TECHNICAL SPECIFICATIONS
Compatible systems per frequency band (up to): 12
Selectable frequencies: 150
Auto Setup Features: QuickScan : Finds group with most compatible frequencies and sets to best frequency
Audio Reference Companding: No
Included Antennas: BLX4, BLX88: Internal, BLX4R: Detachable
Antenna Options: No
Receiver Network Ability: No
PC Control: No
Rack Hardware: URT2 (not included), Rack mount brackets (only with rackable/BLX-R Sets)
Case: No
Transmitter Display: LED
Receiver Display: BLX4, BLX88: LED, BLX4R: High-resolution LCD screen
Battery, Endurance: 2AA, up to 14h
Environment: Small to medium stages
FURTHER TECHNICAL SPECS
Operating Range: 91 m ( line of sight - actual range depends on RF signal absorption, reflection and interference)
Available Frequencies: Between 524-865 MHz (available frequencies depend on applicable regulations in country where system used)
Audio Range: 50-15,000 Hz (dependent on microphone type)
Transmitter RF Output Power: 10 mW, typical (varies by region)
Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")
Battery Life: Up to 14 hours
Dynamic Range: 100 dB A-weighted
System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range: -18°C (0°F) - +50°C (122°F)
Power Requirements: BLX1, BLX2: 2 AA alkaline or rechargeable batteries
BLX4R: 12-15 V DC @ 260 mA, supplied by external power supply (tip positive)
COMPONENT SPECIFICATIONS:
BLX4R RECEIVER
Output Impedance:
- XLR connector: 200 O
- 6.35 mm (1/4") connector: 50 O
Audio Output Level, Ref. ±33 kHz deviation with 1 kHz tone:
- XLR connector: -20.5 dBV (into 100 kO load)
- 6.35 mm (1/4") connector: -13 dBV (into 100 kO load)
RF Sensitivity: -105 dBm for 12 dB SINAD, typical
Image Rejection: >50 dB, typical
Dimensions: 50 mm X 198 mm X 163 mm H x W x D
Weight, without antennas: 998 g
Housing: Molded ABS, steel
Power Requirements: 12-15 V DC @ 260 mA, supplied by external power supply (tip positive)
BLX2 HANDHELD TRANSMITTER
Audio Input Level
- gain 0dB: -20 dBV maximum
- gain -10dB: -10 dBV maximum
Gain Adjustment Range: 10 dB
RF Transmitter Output: 10 mW, typical, varies by region
Dimensions: 224 mm X 53 mm dia.
Weight: 218 g (without batteries)
Housing: Molded ABS
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
Battery Life: up to 14 hours (alkaline)
