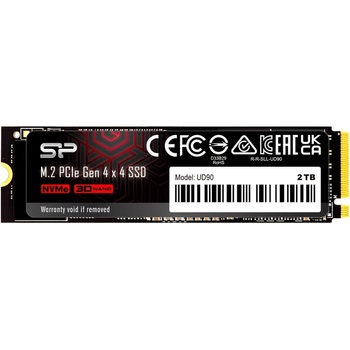

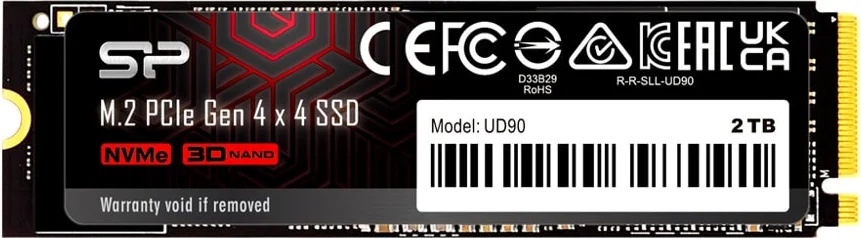

Silicon Power UD90 2TB M.2 2280 (SP02KGBP44UD9005)

Silicon Power PCIe Gen 4x4 UD90

The UD90 supports RAID to protect data in the case of a drive failure. It's also equipped with built-in E2E data protection for enhanced data transfer integrity. Unexpected things can happen at any moment, but the UD90 is prepared for them with your data at its utmost priority.

• Capacity


• 2TB

• Dimensions


• 22.0mm x 80.0mm x 3.5mm

• Weight


• 8g

• Interface


• PCIe Gen 4x4

• Performance Read(max. )


• 2TB: 5,000MB/s

• Performance Write(max. )


• 2TB: 4,800MB/s

• System Requirement


• Computer with M. 2 slots supporting PCIe interface and one of the following operating systems: Windows 8.1, Windows 10 or Windows 11

• Operating Temperature


• 0°C - 70°C

• MTBF (est)


• 1,500, 000 hours

• Shock Resistance Test


• 1500g/0.5ms

• Certification


• CE, FCC, UKCA, BSMI, Green dot, WEEE, RoHS, KC

• Note


• *Performance read/write varies by system performance (such as hardware, software, and interface mode) and capacity

• PCIe Gen 4x4 interface with read speeds up to 5,000MB/s and write speeds up to 4,800MB/s


• Supports NVMe 1.4 and Host Memory Buffer (HMB) for higher performance and lower latency


• 3D NAND technology allows for dense storage in a compact design


• Available in a range of storage capacity options: 250GB, 500GB, 1TB , 2TB and 4TB


• Supports low density parity check (LDPC) coding to ensure accuracy of data transmission and reliability of data access


• Supports SLC Caching to improve sequential read/write and random read/write performance


• Supports RAID to protect data in the case of a drive failure


• Built-in E2E data protection for enhanced data transfer integrity


• Small form factor M. 2 2280 (80mm) allows for easy installation in laptops, small form factor PC systems, and some ultrabooks


• Free download of SP ToolBox to easily obtain disk information such as self-monitoring analysis report, extent of consumption and SSD diagnostics
