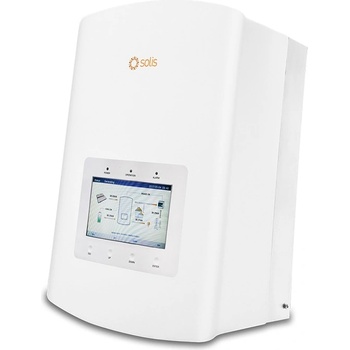

SOLIS Инвертор Solis RHI-5K-48ES-5G, Single Phases, Off Grid, 5000W, 6000VA, RS485 (RHI-5K-48ES-5G)

Input DC(PV side)

Recommended max. PV power:
8 kW
Max. input voltage:
600 V
Rated voltage:
330 V
Start-up voltage:
120 V
MPPT voltage range:
90-520 V
Max. input current:
11 A / 11 A
Max. short circuit current:
17.2 A / 17.2 A
MPPT number/Max. input strings number:
2/2

Battery

Battery type:
Li-ion / Lead-acid
Battery voltage range:
42-58 V
Battery capacity:
50-2000 Ah
Max. charge / discharge power:
5 kW
Max. charge / discharge current:
100A
Communication:
CAN

Output AC(Back-up)

Rated output power:
5 kW
Max. apparent output power:
6 kVA
Back-up switch time:
0.99 (0.8 leading - 0.8 lagging)
THDi:
97.5%
EU efficiency:
>96.8%

Protection

DC reverse-polarity protection:
Yes
Short circuit protection:
Yes
Output over current protection:
Yes
Surge protection:
DC Type II / AC Type II
Ground fault monitoring:
Yes
Integrated AFCI (DC arc-fault circuit protection):
Yes
Protection class/Over voltage category:
I/II

General Data

Dimensions (W*H*D):
333*505*249 mm
Weight:
18.3 kg
Topology:
High frequency isolation (for battery)
Operating ambient temperature range:
-25 ~ +60°C
Ingress protection:
IP65
Cooling concept:
Natural convection
Max. operation altitude:
2000 m
Safety/EMC standard:
IEC/EN 62109-1/-2, EN 61000-6-2/-3
Grid connection standard:
G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA

Features

DC connection:
MC4 connector
AC connection:
Quick connection plug
Display:
7.0"LCD color screen display
Communication:
RS485, Optional: Wi-Fi, GPRS
