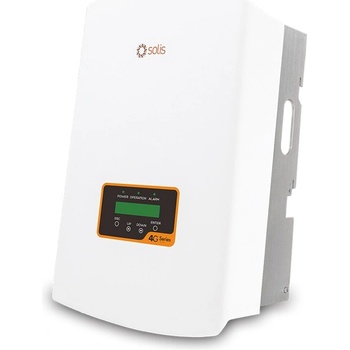

SOLIS Инвертор Solis SOLIS-MINI-3600-4G, Single Phase, On Grid, 3600W, 3600VA, RS485 (SOLIS-MINI-3600-4G)
Input DC Recommended max. PV power: 4kW Max. input voltage: 600V Rated voltage: 330V Start-up voltage: 90V MPPT voltage range: 80-500V Max. input current: ...
546,29 €|1068,45 лв.*
Безплатна доставка, В рамките на 3 дни
Вид:
Най-евтини оферти (1)
SOLIS Инвертор Solis SOLIS-MINI-3600-4G, Single Phase, On Grid, 3600W, 3600VA, RS485 (SOLIS-MINI-3600-4G)
Безплатно
Инвертор Solis SOLIS-MINI-3600-4G, Single Phase, On Grid, 3600W, 3600VA, RS485 (SOLIS-MINI-3600-4G)
Инвертор Solis SOLIS-MINI-3600-4G, Single Phase, On Grid, 3600W, 3600VA, RS485 (SOLIS-MINI-3600-4G)
Описание на продукта
Input DC Recommended max. PV power: 4kW Max. input voltage: 600V Rated voltage: 330V Start-up voltage: 90V MPPT voltage range: 80-500V Max. input current: ...
Параметри на продукта
Производител
SOLIS
Етикет
SOLIS
Параметри на продукта
Производител
SOLIS
Етикет
SOLIS
Описание на продукта
Input DC
Recommended max. PV power:
4kW
Max. input voltage:
600V
Rated voltage:
330V
Start-up voltage:
90V
MPPT voltage range:
80-500V
Max. input current:
19A
Max. Short Circuit current:
30A
MPPT number:
1
Max. input strings number:
2
Output AC
Rated output power:
3.6kW
Max. apparent output power:
3.6kVA
Max. output power:
3.6kVA
Rated grid voltage:
1/N/PE, 220V/230V
Rated grid frequency:
50Hz/60Hz
Rated grid output current:
16A
Max. output current:
16A
THDi:
0.99 (0.8 leading - 0.8 lagging)
Efficiency
Max. efficiency:
97.5%
EU efficiency:
96.8%
Protection
DC reverse-polarity protection:
Yes
Short circuit protection:
Yes
Output over current protection:
Yes
Surge protection:
Yes
Grid monitoring:
Yes
Anti-islanding protection:
Yes
Temperature protection:
Yes
Integrated DC switch:
Optional
General Data
Dimensions (W*H*D):
310mm*373mm*160mm
Weight:
7.7kg
Topology:
Transformerless
Self consumption:
Recommended max. PV power:
4kW
Max. input voltage:
600V
Rated voltage:
330V
Start-up voltage:
90V
MPPT voltage range:
80-500V
Max. input current:
19A
Max. Short Circuit current:
30A
MPPT number:
1
Max. input strings number:
2
Output AC
Rated output power:
3.6kW
Max. apparent output power:
3.6kVA
Max. output power:
3.6kVA
Rated grid voltage:
1/N/PE, 220V/230V
Rated grid frequency:
50Hz/60Hz
Rated grid output current:
16A
Max. output current:
16A
THDi:
0.99 (0.8 leading - 0.8 lagging)
Efficiency
Max. efficiency:
97.5%
EU efficiency:
96.8%
Protection
DC reverse-polarity protection:
Yes
Short circuit protection:
Yes
Output over current protection:
Yes
Surge protection:
Yes
Grid monitoring:
Yes
Anti-islanding protection:
Yes
Temperature protection:
Yes
Integrated DC switch:
Optional
General Data
Dimensions (W*H*D):
310mm*373mm*160mm
Weight:
7.7kg
Topology:
Transformerless
Self consumption:
Липсва или е неправилен важен параметър? Предоставената информация е само за ориентиране, затова ви съветваме да проверите дали предлаганият продукт има ключовите параметри от които се нуждаете, преди да купите от магазина по ваш избор. Въпреки че се стремим към максимална точност на информацията, за съжаление не можем винаги да гарантираме 100% съответствие. Цените на продуктите са с включен ДДС.
Продуктът все още няма отзиви.
