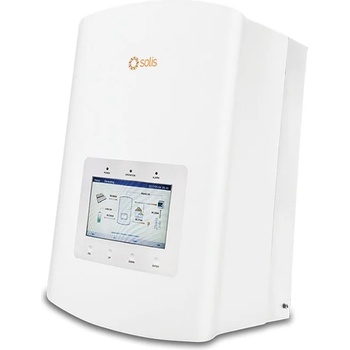

SOLIS Соларен инвертор Solis S5-EH1P3.6K-L, 4000VA, 3600W, RS485 (S5-EH1P(3-6)K-L)

Input DC (PV side)

Recommended max. PV power:
5.7 kW
Max. input voltage:
600 V
Rated voltage:
330 V
Start-up voltage:
120 V
MPPT voltage range:
90-520 V
Max. input current:
15 A / 15 A
Max. short Circuit current:
22.5 A / 22.5A
MPPT number/Max. input strings number:
2/2

Battery

Battery type:
Li-ion / Lead-acid
Battery voltage range:
42-58 V
Battery capacity:
50-2000 Ah
Max. charge / discharge power:
3 kW
Max. charge / discharge current:
62.5A
Communication:
CAN

Output AC (Back-up)

Rated output power:
3 kW
Max. apparent output power:
4.5 kVA, 10SEC
Back-up switch time:
96.5%

Protection

DC reverse-polarity protection:
Yes
Short circuit protection:
Yes
Output over current protection:
Yes
Surge protection:
DC Type II / AC Type II
Ground fault monitoring:
Yes
Integrated AFCI (DC arc-fault circuit protection):
Yes (Activation required)
Protection class/Over voltage category:
I/II

General Data

Dimensions (W*H*D):
333*505*249 mm
Weight:
18.3 kg
Topology:
High frequency isolation (for battery)
Operating ambient temperature range:
-25 ~ +60°C
Ingress protection:
IP65
Cooling concept:
Natural convection
Max. operation altitude:
3000 m
Safety/EMC standard:
IEC/EN 62109-1/-2, EN 61000-6-2/-3
Grid connection standard:
G98 or G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/ UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA

Features

DC connection:
MC4 connector
AC connection:
Quick connection plug
Display:
7.0"LCD color screen display
Communication:
RS485, Optional: Wi-Fi, GPRS
