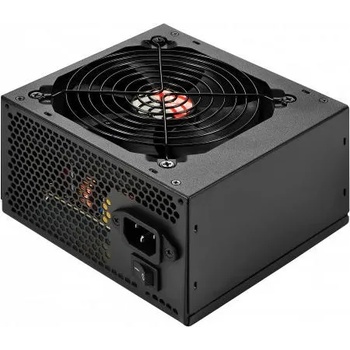

Spire EagleForce 600W 80 PLUS (SP-ATX-600W-80)

A 600W 80PLUS PSU refers to a power supply unit (PSU) for a computer that can deliver up to 600 watts of power and has an 80 PLUS certification.

The wattage (600W) refers to the maximum amount of power that the PSU can deliver to the computer’s components, such as the CPU, GPU, and other peripherals. The wattage required depends on the specific components in the computer and their power requirements.

The 80 PLUS certification indicates that the PSU is energy efficient, meaning that it can convert a high percentage of the AC power from the wall outlet into DC power for the computer’s components. Specifically, an 80 PLUS PSU is at least 80% efficient at various loads. This certification helps to ensure that the PSU will not waste too much energy as heat, which can lead to higher energy bills and potentially shorten the lifespan of the components.

Overall, a 600W 80PLUS PSU is a suitable choice for a mid to high-end gaming or workstation computer with demanding components that require a higher wattage PSU.

The EagleForce ATX power supply series aimed at the pc enthusiast en pc gamer. Equipped with selected all high-quality components, supplying optimal power under the most demanding circumstances. This 600WATT EagleForce PSU is featured wth New highlights: Version 2.31 specification compliant, advanced circuit design with better grade A components supporting the newest Intel & AMD dual core & quad core micro-processors. Auto-thermal fan control, maximizing the air cooling performance whilst maintaining reduced sound levels.

Energy sufficient and compliant with the Active Power Factor Correction (APFC) Energy Star & 80PLUS certified standards. As well as ErP 2013 Lot6, which guarantees that your PSU will use less than 1W on system standby and lower than 45% transferring efficiency on 5V standby. Housed in cool black powdered coated enclosures and backed by 2 years manufacturer warranty.



Технически характеристики

Weight
2,8 kg

Dimensions
27 × 26 × 11,5 cm

Brand

Spire

Unit Weight

2.5

Unit Dimension (cm)

14 x 15 x 8.6

Package Weight (kg)

2.8

Package Dimension (cm)

27 x 26 x 11.5

Certification

CE/RoHS

Color

black

Connectors

1x 20+4P, 500mm

1x P8 (4+4) 500mm

1x P6 (2+4) 600mm

1x SATA+SATA+IDE, 500mm

1x IDE+IDE+SATA, 500mm

1x IDE+SATA+SATA, 500mm

Cooling

One 120mm cooling fan

Efficiency

80 PLUS Certified

Features

OCP / OVP / UVP / OPP / OTP / SCP

Frequency

50~60 Hz

Gaming

No

Hold Up Time

t5>17 mS at 100% Load

LED Fan

No

Life Expectancy (HRS)

100,000 Hours

Material

SPCC baking black paint

Material Thickness (mm)

0.6

Modular Cables

NO

Noise Level (dBA)

27 dBA Max

Nominal Power (w)

600

Operating Temperature (°C)

0~40

Packaging Includes

Mounting screws 5pcs

EU 1.5M Safty Power Cord

Packaging Type

Yellow box

P. G. Signal

100~500ms

Rated Current (A)

230VAC, 4A

Storage Temperature (°C)

-20~60

Voltage AC (INPUT)

200 ~ 240

Voltage Protection

+12V trip point 13.4V – 15.6V

+5V trip point 5.74V – 7.0V

+3.3V trip point 3.76V – 4.3V
