Stonet MW5360

Stonet MW5360

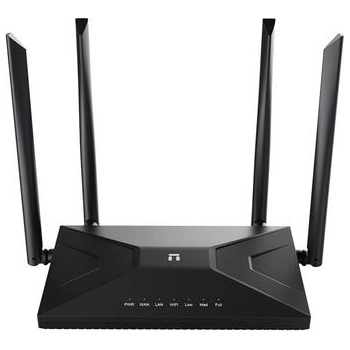

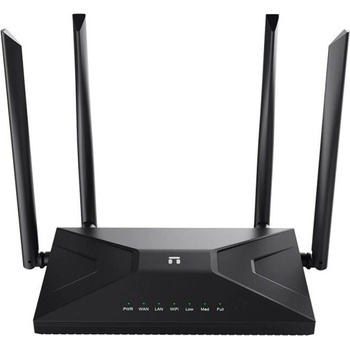

300Mbps Wireless 4G LTE Router

The STONET 4G LTE router MW5360 equipped with 4G LTE module, Allowed you access the Internet with a SIM card. With the separate WiFi antenna systems and unique detachable 4G antenna ports design, it allows you to put the 4G antennas to anywhere inside or outside of your house, which bring you a better 4G speed and better WiFi performance. MW5360 also offer wired WAN port to be used as a common wireless router.

Plug & play, access the internet without any setting

Wide Band for LTE, fit for most ISPs

Muti-access, 4G LTE and Wired access available

Works seamlessly with all 802.11a/b/g/n devices

Simultaneous 2.4GHz 300Mbps

2* 5dBi high gain WiFi antennas and 2*5dBi detachable 4G antennas

Easy wireless security setup at a push of the WPS button

Intelligent bandwidth control to manage the bandwidth usage for each computer

reasonably

Internet Access Control- IP filtering, MAC Filtering, Domain Filtering based on time

Quick setup, with built-in multilingual management page



WirelessStandardsIEEE 802.11b/g/n 2.4GHzSignal RateUp to 300Mbps 2.4GHzFrequency Range2.4-2.4835GHzTransmit Power20dBm(MAX)Data Transfer Rate802.11n:
40MHz  (300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
20MHz  (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
802.11g:
(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b:
(11Mbps, 9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)Wireless ModeAP/APR, Multi-SSIDWireless Security None / WEP /WPA-PSK/WPA2-PSK (TKIP/AES)
  4G LTE
  Band for LTE


FDD-LTE:B1/B3/B5/B8

 TDD-LTE: B38/B39/B40/B41

 HSPA/UMTS:B1/B5/B8

 GSM/GPRS/EDGE:B3/B8

 TD-SCDMA:B34/B39

 EVDO/CDMA:BC0

 Mode

 FDD-LTE、TDD-LTE、TD-SCDMA、HSPA+ HSUPA

 HSDPA、UMTS、EVDO、EDGE、GPRS、GS M、CDMA1x

 Card Speed

FDD-LTE: 150 Mbps DL, 50 Mbps UL

 TDD-LTE: 132 Mbps DL, 30 Mbps UL

 TD-HSUPA:2.8Mbps DL

 TD-HSUPA:2.2Mbps UL

 DC-HSPA+:42 Mbps DL

 HSPA+:21 Mbps DL

 HSUPA:5.76Mbps UL

 WCDMA: 384 Kbps DL, 384Kbps UL

 CDMA2000 EVDO: 3.1Mbps DL, 1.8Mbps UL

 EDGE: 237 Kbps DL, 118Kbps UL

Hardware
  Standards

 IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

 IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX

 Interface

 1×10/100Mbps Auto MDI/MDIX RJ45 WAN port

 2×10/100Mbps Auto MDI/MDIX RJ45 LAN port

 SIM card slot

 LED Indicators

 Power, LAN All, WiFi/WPS, EWAN, LTE Strong, LTE Middle, LTE

 Weak

 Buttons Default, WPS Antenna 2×5dBi WiFi antennas, 2 SMA detachable 4G antennas Power Supply DC 12V/1.0A(Output)

 Dimensions

 (L x W x H )

 182mm×108mm×25mm WAN Type

 WAN: DHCP / Static IP / PPPoE / Russia PPPoE / L2TP / PPTP /

 3G&4G

 Others

 Bandwidth Control, Access Control, IPTV, Virtual Server, DMZ,

 VPN Pass-through, Dynamic DNS, Static Routing

OthersCertificationFCC, CE, EACEnvironmentOperating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
