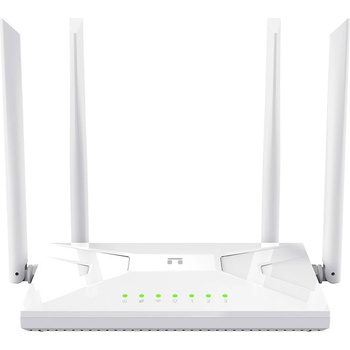

Stonet NC21

Stonet NC21

AC1200 Wireless Dual Band Router

Equipped with Realtek 1GHz high performance SoC, the router NC21 becomes the most powerful 802.11AC Wi-Fi router, perfect data transfer performance, can run stably in up to 800M bandwidth accessing environment, Also offer you simultaneous dual band connection with 867Mbps wireless speeds over 5GHz band and 300Mbps over 2.4GHz band.

Works seamlessly with all 802.11a/b/g/n/ac devices.

Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps connections.

Various WAN connection types in AP Router mode: DHCP, Static IP, PPPoE, L2TP,      PPTP, Dual Access (Russia PPPoE/PPTP/L2TP).

MU-MIMO, Beamforming technology.

Multiple wireless modes: AP Router, AP, WISP, Client, Repeater.

4* 5dBi high gain antennas.

Easy wireless security setup at a push of the WPS button.

Intelligent bandwidth control to manage the bandwidth usage for each computer reasonably.

Access Control, IP filtering, MAC Filtering, Domain Filtering, IPv6 Filtering based on time.

Easy Setup: with built-in multilingual management page.

TR069





Specifications:

WIRELESS Standards

 WiFi 5

 IEEE802.11ac/n  5GHz

 IEEE802.11b/g/n  2.4GHz

 WiFi Speeds

 AC1200

 5GHz:     867 Mbps (802.11ac)

 2.4GHz:  300 Mbps (802.11n)

 WiFi Range



 3 Bedroom Houses

 4x Fixed High-Performance Antennas

 Multiple antennas form a signal-boosting array to cover more directions and large areas

 Beamforming Concentrates wireless signal strength towards clients to expand WiFi range

 High-Power FEM Improves transmission power to strengthen signal coverage

 WiFi Capacity



 Dual-Band

 Allocate devices to different bands for optimal performance

 OFDM

 Simulta neously communicates with multiple Wi-Fi 5/4 clients

 Airtime Fairness

 Improves network efficiency by limiting excessive occupation

 4 Streams Connect your devices to more bandwidth

 Working Modes  AP Router Mode, AP Mode, WISP Mode, Client Mode, Repeater Mode HARDWARE Process or  1GHz CPU Main Chipset  RTL8197FH-VG5+RTL8812FR DDR/FLASH  128MB/8MB Interface  1x Fast WAN Port + 3x Fast LAN Ports Buttons  WPS、RESET Power  12V1A SOFTWARE WiFi Encryption  WEP, WPA-PSK, WPA2-PSK, WPA/WPA2-PSK Network Security  Access Control, IP & MAC Binding Guest Network  4*5GHz Guest Network /4*2.4GHz Guest Network Protocols  IPv4, IPv6 WAN Types  DHCP, Static IP, PPPoE, L2TP, PPTP Quality of Service  QoS by Device Forwarding  Virtual Servers, DMZ, UPnP IPTV  Bridge, Tag VLAN DHCP  Address Reservation, DHCP Client List, DHCP Server Access Control  IP Filtering, MAC Filtering, Domain Filtering, IPv6 Filtering Dynamic DNS  DynDns, no-ip IGMP  IGMP Proxy, IGMP Snooping VPN  PPTP Pass-through, L2TP Pass-through, IPSEC Pass-through, SIP Pass-through Others  Bandwidth Control, Multiple SSID, FOTA, TR069, WOL, ARP List, Static Routing, Port Setting, Remote Access, Backup & Restore PHYSICAL Dime nsions(W×D×H)  228*134*188mm
