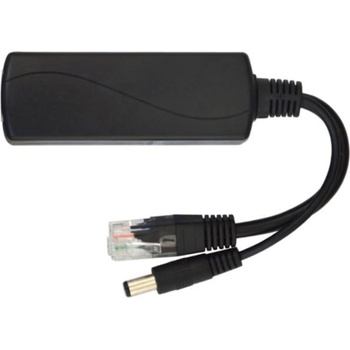

Stonet PoE сплитер Stonet PS1, 10/100Mbps, IEEE802.3af/IEEE802.3x, 12V/1.2A, 14W (LC-PS1)

Stonet PS1 LC-PS1



POE Splitter

Stonet PS1 POE splitter is a device designed to split your standard 802.3af/at PoE power input in to 12V 1.2A (14W Max) DC power supply and 10/100 Mbps data onto the RJ45 output. It is great to provide power and data for your surveillance camera, wireless access point and VoIP phone upto 328 feet (100 meter). This device is also equipped with short circuit and over current protection to prevent your device from power surge damage. This splitter is for indoor use only.





【Power & Da ta】It splits your standard 802.3af /at PoE power input in to 12V 1.2 A (14W Max) DC power supply and 1 0/100 Mbps data onto the RJ45 outp ut.  Supports POE IEEE 802.3af/at compl iant Powered Device (PD)

【High Performance】POE splitter  is made of durable materials to  maintain your power supply and data  transmition.  It is ideal for devices that don 't support PoE in a PoE environmen t.

【Multiple Protection】Power ove r Ethernet IEEE 802.  3af/at compliant,  compatible with DC voltage 44-57V standard POE switches,  overvoltage protection,  short-circuit protection and overcu rrent protection,  it is more safe.

【Broad Application】Eliminates  the need for a power supply or fo r a camera to be located near a  power outlet.  Available with IP camera,  IP phone,  wireless AP and other 12V Non-POE  devices for home,  school,  office,  park,  factory,  mall,  warehouse,  etc.



Category SpecificationHa rdware  Power Supply Pin (1,2/ 3,6);(4,5/7,8)Connector 1×10/100Mbps POE RJ45 Input Port 1×10/100M Male Output Port 1×(5.5×2.1mm) DC Output PortNetwork Medium Cat 5e or better UTPStandard IEEE 802.3i 10 BASE-T IEEE 802.3u 100 BASE-TX IEEE 802.3x Flow Control IEEE 802.3af Power over EthernetRate 10/100MbpsTransmission Method Store and ForwardLED Status POE power input indicator lightEnvironment Operation Temperature: 0℃～40℃ Storage Temperature: -40℃～70℃ Operation Humidity: 10%～90% RH Non-condensing Storage Humidity: 5%～90% RH Non-condensingPhysical Dimensions 80mm × 27mm × 22mm (W × D × H)
