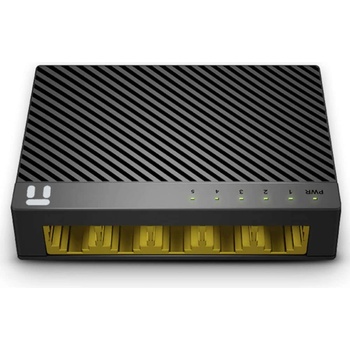

Stonet ST3105GC

Stonet ST3105GC



Switch ST3105GC provides 5 10/100/1000Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. This Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 1000Mbps network. It will boost your network performance with up to 2000Mbps full duplex data transfer speed.



• 5*10/100/1000Mbps RJ45 ports, Auto-Negotiation & Auto MDI/MDIX
• IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
• 10Gbps switching fabric capacity/backplane bandwidth
• Support 9216-byte jumbo packet length forwarding at wired speed
• Supports 2K MAC address table, MAC address auto-learning & auto-aging
• Green Ethernet technology for effective power saving
• LED indicators for simple diagnostics and management
• Plug and play, no configuration required

HardwareInterface 5* 10/100/1000M TX portsLED PWR, LAN1-LAN5Power Supply DC 5V/600mA (Output)Dimensions (L x W x H ) 85 x 75x 22mmCabling Type 10Base-T: UTP Cat. 3 or up
100Base-TX: UTP Cat. 5 or up
1000Bast-T: UTP Cat. 5 or upSoftwareStandard IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Bast-TAccess Method CSMA/CDTransmission Method Store and ForwardSwitch Architecture Non-blockingData Transmission Rate 10/100Mbps(Half-duplex)
20/200/2000Mbps(Full-duplex)MAC Address Table 2KOthersCertification FCC, CEEnvironment Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing
