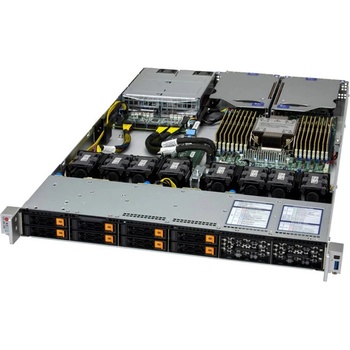

Supermicro SYS-112C-TN

CloudDC SuperServer SYS-112C-TN

Key Applications

• Virtualization
• HPC
• CDN, Edge Nodes
• Cloud Computing
• Data Center Optimized
• Storage Headnode



Ke y Features

1. All-in-one platform for cloud data centers, based on the OCP Data Center Modular Hardware System (DC-MHS) with flexible I/O and storage configurations
   Based on Modular Scalable DeNsity Optimized HPM Form Factor (M-SDNO)
   Support DC-SCM module with OpenBMC
2. Single Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
3. 16 DIMM slots supporting DDR5 RDIMM(2DPC/1DPC) or MRDIMM(1DPC)
4. Support FH DPU and single slot GPU
5. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).
6. Breeze through high throughput workloads with PCIe 5.0 NVMe drive support
7. Trusted Platform Module (TPM) 2.0 9672 onboard



Catego ry SpecificationMo therboard Model Supermicro X14SBHMCPU Socket Single Socket E2 (LGA-4710)Supported Processors Intel Xeon 6700/6500 series (P-cores) / Xeon 6700 series (E-cores)Core Count P-cores: Up to 86C/172T, 336MB Cache; E-cores: Up to 144C/144T, 108MB CacheCPU TDP Support Up to 350W (Air cooled)Max GPU Count Up to 2 single-width GPUsSupported GPU NVIDIA PCIe L4CPU–GPU Interconnect PCIe 5.0 x16Memory Slots 16 DIMM slots, 8 ChannelsMax Memory (1DPC RDIMM) Up to 2TB DDR5-6400 ECCMax Memory (1DPC MRDIMM) Up to 512GB DDR5-8000 ECC (P-core only)Max Memory (2DPC) Up to 4TB DDR5-5200 ECCMemory Voltage 1.1VNVMe RAID Support RAID 0/1/5/10 (Intel VROC key required)Chipset System on Chip (SoC)Network Connectivity Via AIOM (OCP / Add-on cards supported)LAN Ports 1× RJ45 1GbE Dedicated BMC LAN (via DC-SCM)USB Ports 2× USB 3.2 Gen1 Type-A (Rear)Video Output 1× Mini-DisplayPort (Rear)TPM Header 1× TPM HeaderBIOS Type AMI 32MB SPI Flash EEPROMManagement Software SuperCloud Composer, SSM, SDO, TAS, SAAPower Management ACPI / APMSecurity Hardware TPM 2.0, Silicon Root of Trust (NIST 800-193)Security Features Secure Boot, Signed Firmware, Secure Updates, Firmware Recovery, Remote Attestation, BMC Protection, System LockdownPC Health Monitoring CPU voltages, memory, chipset, fan tachometers, PWM fan control, temperature sensorsChassis Form Factor 1U RackmountChassis Model CSE-MD101TS-R000NDPHeight1.7″ (43 mm)Width 17.2″ (437 mm)Depth 29.4″ (747 mm)Package Dimensions 8.1″ × 23.8″ × 40.6″Weight (Gross / Net) 47 lbs (21.3 kg) / 31 lbs (14.1 kg)Color BlackFront Panel Buttons Power, UIDFront Panel LEDs HDD, LAN1, LAN2, Power Failed, Power Status, System InfoExpansion Slots 2× PCIe 5.0 x16 FHHL + 1× PCIe 5.0 x16 AIOM (OCP 3.0)Drive Bays (Default) 8× 2.5″ PCIe 5.0 x4 NVMe/SAS/SATA hot-swapDrive Bays (Option A) 12 bays: 8× NVMe/SAS/SATA + 4× SAS/SATADrive Bays (Option B) 12× 2.5″ PCIe 5.0 x4 NVMe/SAS/SATAM. 2 Slots 2× M. 2 PCIe 5.0 x2 (2280 / 22110)System Cooling Fans Up to 8× 40×40×56mm counter-rotating PWM fansAir Shrouds CPU air shroud, M. 2 side air shroudPower Supply 2× 1000W Redundant (1+1) Titanium 96% efficiencyPSU Dimensions 73.5 × 40 × 185 mmPSU Input Voltage 800W: 100–127V AC / 1000W: 200–240V AC+12V Output Up to 83A (200–240V), 66.7A (100–127V)12V Standby 2.1AOutput Type Backplane gold-finger
