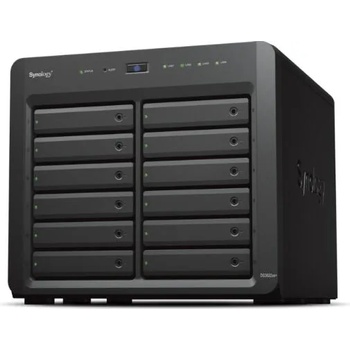

Synology DiskStation DS3622XS+ Bundle 16GB

Този продукт е тестван и одобрен от Synology

Synology DS3622XS+

CPU

CPU Model: Intel Xeon D-1531

CPU Quantity: 1

CPU Architecture: 64-bit

CPU Frequency: 6-core 2.2 (base) / 2.7 (turbo) GHz

Hardware Encryption Engine (AES-NI)

Memory

System Memory: 16 GB DDR4 ECC SODIMM

Memory Module Pre-installed: 16 GB (8 GB x 2)

Total Memory Slots: 4

Maximum Memory Capacity: 48 GB (8 GB x 2 + 16 GB x 2)

Notes

Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays: 12

Maximum Drive Bays with Expansion Unit: 36 (DX1222 x 2)

Compatible Drive Type* (See all supported drives)

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

Hot Swappable Drive

Notes

Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.

"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

External Ports

RJ-45 1GbE LAN Port*: 2 (with Link Aggregation / Failover support)

RJ-45 10GbE LAN Port: 2 (with Link Aggregation / Failover support)

Management LAN Port: 1

USB 3.2 Gen 1 Port*: 2

Expansion Port: 2

Notes

This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.

The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

PCIe Expansion 1 x Gen3 x8 slot (x8 link)

File System

Internal Drives

Btrfs

EXT4

External Drives

Btrfs

EXT4

EXT3

FAT

NTFS

HFS+

exFAT

Notes exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.

Appearance

Size (Height x Width x Depth) 270 mm x 300 mm x 340 mm

Weight 9.8 kg

Others

System Fan: 120 mm x 120 mm x 2 pcs

Fan Speed Mode

Full-Speed Mode

Cool Mode

Quiet Mode

Easy Replacement System Fan

Power Recovery

Noise Level* 25 dB(A)

Scheduled Power On / Off

Wake on LAN / WAN

Power Supply Unit / Adapter 550 W

AC Input Power Voltage 100V to 240V AC

Power Frequency: 50/60 Hz, Single Phase

Power Consumption*: 94.42 W (Access)

54.33 W (HDD Hibernation)

British Thermal Unit 322.39 BTU/hr (Access)

185.51 BTU/hr (HDD Hibernation)

Temperature

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Storage Temperature: -20°C to 60°C (-5°F to 140°F)

Relative Humidity: 5% to 95% RH

Certification

FCC

CE

BSMI

VCCI

RCM

UKCA

EAC

KC

UL
