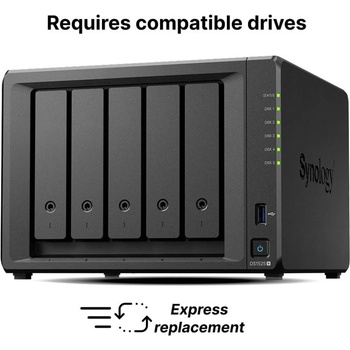

Synology DS1525+ 2x12TB



DS1525+





Hardware SpecificationsCPU CPU Model AMD Ryzen V1500B  CPU Quantity 1  CPU Core 4  CPU Architecture 64-bit  CPU Frequency 2.2 GHz  Hardware Encryption Engine YesMemory System Memory 8 GB DDR4 ECC SODIMM  Memory Module Pre-installed 8 GB (8 GB x 1)  Total Memory Slots 2  Maximum Memory Capacity 32 GB (16 GB x 2)Storage Drive Bays 5  Maximum Drive Bays with Expansion Unit 15 (DX525 x 2)  M. 2 Drive Slots 2 (NVMe)  Hot Swappable Drive* YesExternal Ports RJ-45 2.5GbE LAN Port 2  USB 3.2 Gen 1 Port 2  Expansion Port 2  Expansion Port Type USB Type-CPCIe PCIe Expansion 1 x Gen3 x2 network upgrade slotAppearance Size (Height x Width x Depth) 166 mm x 230 mm x 223 mm  Weight 2.67 kgOthers System Fan 92 mm x 92 mm x 2 pcs  Fan Speed Mode

• Full-Speed Mode
• Cool Mode
• Quiet Mode

  Brightness Adjustable Front LED Indicators Yes  Power Recovery Yes  Noise Level* 22.60 dB(A)  Scheduled Power On / Off Yes  Wake on LAN / WAN Yes  Power Supply Unit / Adapter 120 watts  AC Input Power Voltage 100V to 240V AC  Power Frequency 50/60 Hz, Single Phase  Power Consumption* 44.56 watts (Access)
13.63 watts (HDD Hibernation)  British Thermal Unit 151.95 BTU/hr (Access)
46.48 BTU/hr (HDD Hibernation)Temperature Operating Temperature 0°C to 40°C (32°F to 104°F)  Storage Temperature -20°C to 60°C (-5°F to 140°F)  Operating Humidity 8% to 80% RH  Storage Humidity 5% to 95% RHCertification

• FCC
• CE
• BSMI
• VCCI
• RCM
• UKCA
EAC
• CCC
• KC
• BIS

Compatibility List

Твърд диск 20TB Synology HAT5310-20T, SATA 6Gb/s, 7200 rpm, 3.5" (8.89cm)Твърд диск 18TB Synology HAT5310-18T, SATA 6Gb/s, 7200rpm, 512MB кеш, 3.5" (8.89 cm)Твърд диск 8TB Synology HAT5310-8T, SATA 6Gb/s, 7200rpm, 256MB кеш, 3.5" (8.89 cm)Твърд диск 16TB Synology HAT5300 (HAT5300-16T), SATA 6Gb/s, 7200 rpm, 512MB кеш, 3.5" (8.89 cm)Твърд диск 12TB Synology HAT5300 (HAT5300-12T), SATA 6Gb/s, 7200 rpm, 256 MB кеш, 3.5" (8.89 cm)Твърд диск 8TB Synology HAT5300 (HAT5300-8T), SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89 cm)Твърд диск 4TB Synology HAT5300-4T, SATA 6Gb/s, 7200 rpm, 3.5" (8.89 cm)Твърд диск 16TB Synology HAT3310-16T, SATA 6Gb/s, 7200 rpm, 3.5" (8.89cm)Твърд диск 12TB Synology HAT3310-12T, SATA 6Gb/s, 7200 rpm, 3.5" (8.89cm)Твърд диск 8TB Synology HAT3310-8T, SATA 6Gb/s, 7200 rpm, 3.5" (8.89cm)Твърд диск 12TB Synology Plus, SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89cm)Твърд диск 8TB Synology Plus, SATA 6Gb/s, 5400 rpm, 256MB кеш, 3.5" (8.89cm)Твърд диск 6TB Synology Plus, SATA 6Gb/s, 5400 rpm, 256MB кеш, 3.5" (8.89cm)Твърд диск 4TB Synology Plus, SATA 6Gb/s, 5400 rpm, 256MB кеш, 3.5" (8.89cm)Твърд диск 2TB Synology Plus, SATA 6Gb/s, 5400 rpm, 256MB кеш, 3.5" (8.89cm)Памет SSD 3.84TB Synology SAT5221 (SAT5221-3840G), SATA 6Gb/s, 2.5" (6.35 cm), скорост на четене до 500 MB/s, скорост на запис до 500 MB/sПамет SSD 1.92TB Synology SAT5221 (SAT5221-1920G), SATA 6Gb/s, 2.5" (6.35 cm), скорост на четене до 530 MB/s, скорост на запис до 500 MB/sПамет SSD 960GB Synology SAT5221 (SAT5221-960G), SATA 6Gb/s, 2.5" (6.35 cm), скорост на четене до 530 MB/s, скорост на запис до 500 MB/sПамет SSD 480GB Synology SAT5221 (SAT5221-480G), SATA 6Gb/s, 2.5" (6.35 cm), скорост на четене до 530 MB/s, скорост на запис до 430 MB/sПамет SSD 7TB Synology SAT5210-7000G, SATA 6Gb/s, 2.5"(6.35 cm), скорост на четене до 530MB/s, скорост на запис до 500MB/s



 Памет SSD 400GB Synology SNV3410-400G, NVMe, M. 2 (2280), скорост на четене 3000 MB/s, скорост на запис 750 MB/sПамет SSD 800GB Synology (SNV3400-800G), NVMe, M. 2 (2280), скорост на четене 3100 MB/s, скорост на запис 1000 MB/sПамет SSD 400GB Synology (SNV3400-400G), NVMe, M. 2 (2280), скорост на четене 3100 MB/s, скорост на запис 550 MB/s
