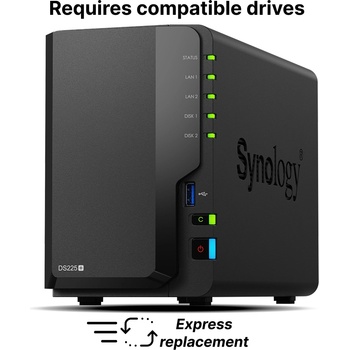

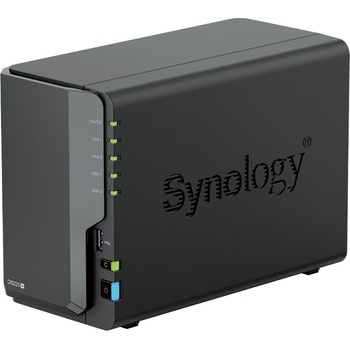

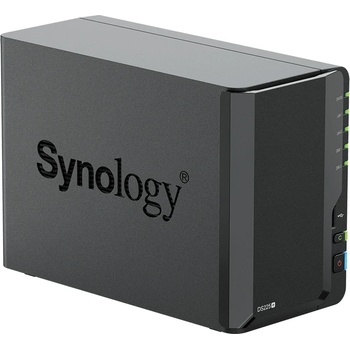

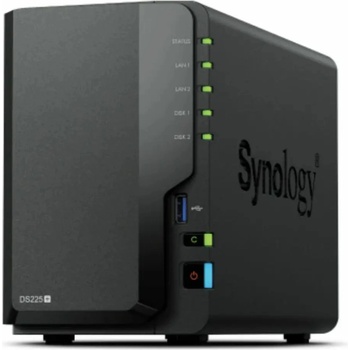

Synology DS225+

Synology DS225+

Store, share, and protect

Manage all your documents, photos, and other files, back up applications and devices, and protect your assets with professional video surveillance.

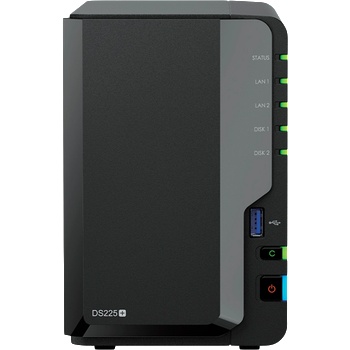

• < i>1. Status indicator
• 2. LAN indicators
• 3. Drive status indicators
• 4. USB 3.2 Gen 1 port
• 5. Copy button
• 6. Power button and indicator
• 7. Fan
• 8. 1GbE RJ-45 port
• 9. 2.5GbE RJ-45 port
• 10. Reset button
• 11. USB 3.2 Gen 1 port
• 12. Power port
• 13. Kensington security slot



Specifications:



Hardware SpecificationsCPU CPU Model Intel Celeron J4125  CPU Quantity 1  CPU Core 4  CPU Architecture 64-bit  CPU Frequency 2.0 (base) / 2.7 (turbo) GHz  Hardware Encryption Engine YesMemory System Memory 2 GB DDR4 non-ECC  Total Memory Slots 1  Maximum Memory Capacity 6 GB (2 GB + 4 GB)Storage Drive Bays 2  Drive Type

• 3.5" SATA HDD
• 2.5" SATA SSD

  Hot Swappable Drive* YesExternal Ports RJ-45 1GbE LAN Port 1  RJ-45 2.5GbE LAN Port 1  USB 3.2 Gen 1 Port 2  USB Copy Yes  Notes This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. Appearance Size (Height x Width x Depth) 165 mm x 108 mm x 232.2 mm  Weight 1.3 kgOthers System Fan 92 mm x 92 mm x 1 pcs  Fan Speed Mode

• Full-Speed Mode
• Cool Mode
• Quiet Mode

  Brightness Adjustable Front LED Indicators Yes  Power Recovery Yes  Noise Level* 19.6 dB(A)  Scheduled Power On / Off Yes  Wake on LAN / WAN Yes  Power Supply Unit / Adapter 60 watts  AC Input Power Voltage 100V to 240V AC  Power Frequency 50/60 Hz, Single Phase  Power Consumption* 16.98 watts (Access)
6.08 watts (HDD Hibernation)  British Thermal Unit 57.90 BTU/hr (Access)
20.73 BTU/hr (HDD Hibernation)Temperature Operating Temperature 0°C to 40°C (32°F to 104°F)  Storage Temperature -20°C to 60°C (-5°F to 140°F)  Relative Humidity 5% to 95% RHCertification

• FCC
• CE
• BSMI
• VCCI
• RCM
• UKCA
EAC
• CCC
• KC
• BIS



Compatibility list:

 Твърд диск 20TB Synology HAT5310-20T, SATA 6Gb/s, 7200 rpm, 3.5" (8.89cm)Твърд диск 18TB Synology HAT5310-18T, SATA 6Gb/s, 7200rpm, 512MB кеш, 3.5" (8.89 cm)Твърд диск 8TB Synology HAT5310-8T, SATA 6Gb/s, 7200rpm, 256MB кеш, 3.5" (8.89 cm)Твърд диск 16TB Synology HAT5300 (HAT5300-16T), SATA 6Gb/s, 7200 rpm, 512MB кеш, 3.5" (8.89 cm)Твърд диск 12TB Synology HAT5300 (HAT5300-12T), SATA 6Gb/s, 7200 rpm, 256 MB кеш, 3.5" (8.89 cm)Твърд диск 8TB Synology HAT5300 (HAT5300-8T), SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89 cm)Твърд диск 4TB Synology HAT5300-4T, SATA 6Gb/s, 7200 rpm, 3.5" (8.89 cm)Твърд диск 16TB Synology HAT3310-16T, SATA 6Gb/s, 7200 rpm, 3.5" (8.89cm)Твърд диск 12TB Synology HAT3310-12T, SATA 6Gb/s, 7200 rpm, 3.5" (8.89cm)Твърд диск 8TB Synology HAT3310-8T, SATA 6Gb/s, 7200 rpm, 3.5" (8.89cm)Твърд диск 12TB Synology Plus, SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89cm)Твърд диск 8TB Synology Plus, SATA 6Gb/s, 5400 rpm, 256MB кеш, 3.5" (8.89cm)Твърд диск 6TB Synology Plus, SATA 6Gb/s, 5400 rpm, 256MB кеш, 3.5" (8.89cm)Твърд диск 4TB Synology Plus, SATA 6Gb/s, 5400 rpm, 256MB кеш, 3.5" (8.89cm)Твърд диск 2TB Synology Plus, SATA 6Gb/s, 5400 rpm, 256MB кеш, 3.5" (8.89cm)Памет SSD 3.84TB Synology SAT5221 (SAT5221-3840G), SATA 6Gb/s, 2.5" (6.35 cm), скорост на четене до 500 MB/s, скорост на запис до 500 MB/sПамет SSD 1.92TB Synology SAT5221 (SAT5221-1920G), SATA 6Gb/s, 2.5" (6.35 cm), скорост на четене до 530 MB/s, скорост на запис до 500 MB/sПамет SSD 960GB Synology SAT5221 (SAT5221-960G), SATA 6Gb/s, 2.5" (6.35 cm), скорост на четене до 530 MB/s, скорост на запис до 500 MB/sПамет SSD 480GB Synology SAT5221 (SAT5221-480G), SATA 6Gb/s, 2.5" (6.35 cm), скорост на четене до 530 MB/s, скорост на запис до 430 MB/sПамет SSD 7TB Synology SAT5210-7000G, SATA 6Gb/s, 2.5"(6.35 cm), скорост на четене до 530MB/s, скорост на запис до 500MB/s
