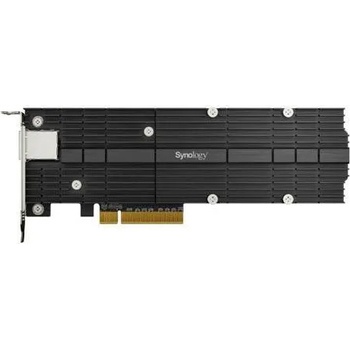

Synology E10M20-T1

Synology E10M20-T1



10GbE bandwidth and M. 2 SSD cache, all at once

Synology E10M20-T1 helps you boost I/O performance and network bandwidth simultaneously using just one PCIe expansion slot on your Synology NAS.



Achieve Multi-Gig Ethernet transmission speeds of up to 10 Gbps.



Спецификации:

General

Host Bus Interface
PCIe 3.0 x8


Bracket Height
Low Profile and Full Height


Size (Height x Width x Depth)
71.75 mm x 200.05 mm x 17.70 mm


Operating Temperature
0°C to 40°C (32°F to 104°F)


Storage Temperature
-20°C to 60°C (-5°F to 140°F)


Relative Humidity
5% to 95% RH

Storage

Storage Interface
PCIe NVMe


Supported Form Factor
22110 / 2280


Connector Type and Quantity
M-key, 2 Slots

Network

IEEE Specification Compliance

• IEEE 802.3x Flow Control


• IEEE 802.3u Fast Ethernet


• IEEE 802.3ab Gigabit Ethernet


• IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet


• IEEE 802.3an 10Gbps Ethernet


Data Transfer Rates
10 Gbps


Network Operation Mode
Full Duplex


Supported Features

• 9 KB Jumbo Frame


• TCP/UDP/IP Checksum Offloading


• Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s


• TCP Segmentation Offload (TSO)


• Large Send Offload (LSO)


• Receive Side Scaling (RSS)


• Generic Receive Offload (GRO)


• Generic Segmentation Offload (GSO)

Compatibility

Applied Models

NVMe SSD

• SA series:SA3600, SA3400, SA6400


• 23 series:RS2423RP+, RS2423+


• 22 series:RS822RP+, RS822+, DS3622xs+, DS2422+


• 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+


• 20 series:RS820RP+, RS820+


• 19 series:DS2419+, DS2419+II, DS1819+


• 18 series:RS3618xs, RS2818RP+, DS3018xs, DS1618+


• 17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xs, DS3617xsII


Notes

• DSM version requirement: 6.2. 3-25426 or later version


• DSM version requirement for RS18017xs+, RS4017xs+, RS3618xs, RS3617xs+, RS3617RPxs, DS3617xs and DS3617xsII: 7.0. 1 or later version
