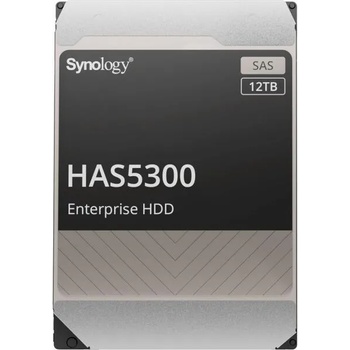

Synology HAS5300 3.5 12TB SAS (HAS5300-12T)

Synology HAT5300-12T

Hardware Specifications

HAT5300-12T

General
Capacity
12 TB

Form Factor
3.5"

Interface
SATA 6 Gb/s

Sector Size
512e

Performance
Rotational Speed
7,200 rpm

Interface Speed
6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s

Buffer Size
256 MiB

Maximum Sustained Data Transfer Speed (Typ. )
242 MiB/s

Reliability
Mean Time to Failure (MTTF)
2.5 million hours

Workload Rating
550 TB Transferred per Year

Power Consumption
Supply Voltage
12 V (± 10%) / 5 V (+10/-7%)

Active Idle (Typ. )
4.25 W

Random Read / Write (4KB Q1) (Typ. )
7.83 W

Notes
Power consumption may differ according to configurations and platforms.

Temperature
Operating
5°C to 60°C (41°F to 140°F)

Non-operating
-40°C to 70°C (-40°F to 158°F)

Shock
Operating
686 m/s 2 70 G (2 ms duration)

Non-operating
2,450 m/s 2 250 G (2 ms duration)

Vibration
Operating
7.35 m/s 2 0.75 G (5 to 300Hz), 2.45 m/s 2 0.25 G (300 to 500 Hz)

Non-operating
29.4 m/s 2 3.0 G (5 to 500 Hz)

Altitude
Operating
-305 m to 3,048 m

Non-operating
-305 m to 12,192 m

Relative Humidity
Operating
5% to 90% R. H. (No condensation)

Non-operating
5% to 95% R. H. (No condensation)

Others
Size (Height x Width x Depth)
26.1 mm x 101.85 mm x 147 mm

Weight
720 g

Certification

• CE


• EAC


• BSMI


• RCM


• KC


• ICES


• UKCA


• TUV


• UL


• RoHS
