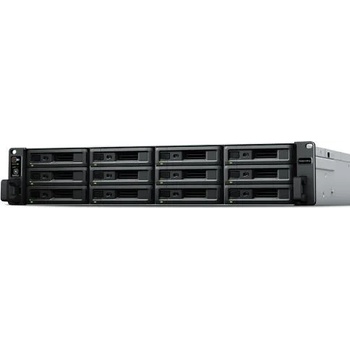

Synology RackStation RS3621RPxs

Този продукт е тестван и одобрен от Synology

Synology RS3621RPXS

CPU

CPU Model: Intel Xeon D-1531

CPU Architecture: 64-bit

CPU Frequency: 6-core 2.2 (base) / 2.7 (turbo) GHz

Hardware Encryption Engine (AES-NI): V

Memory

System Memory: 8 GB DDR4 ECC UDIMM

Memory Module Pre-installed: 8 GB (8 GB x 1)

Total Memory Slots: 4

Maximum Memory Capacity: 64 GB (16 GB x 4)

Notes

Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

For more information on the recommended memory configurations, visit here.

Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays: 12

Maximum Drive Bays with Expansion Unit: 36 (RX1217/RX1217RP x 2)

Compatible Drive Type* (See all supported drives)

3.5" SATA HDD

2.5" SATA SSD

Maximum Single Volume Size*

200 TB (32 GB RAM required, for RAID 5 or RAID 6 groups only)

108 TB

Hot Swappable Drive: V

Notes

Storage Pool and volume creation require all drives to be listed as compatible on the device model's compatibility list.

"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

Each internal volume (may consist of multiple drives) is expandable up to 108 TB (with memory less than 32 GB) or 200 TB (with memory equal to or greater than 32 GB).

External Ports

RJ-45 1GbE LAN Port: 4 (with Link Aggregation / Failover support)

USB 3.2 Gen 1 Port*: 2

Expansion Port: 2

Notes: The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

PCIe Expansion 2 x Gen3 x8 slots (x8 link)

File System

Internal Drives

Btrfs

EXT4

External Drives

Btrfs

EXT4

EXT3

FAT

NTFS

HFS+

exFAT*

Notes: exFAT Access is purchased separately in Package Center.

Appearance

Form Factor (RU): 2U

Size (Height x Width x Depth): 88 mm x 482 mm x 724 mm

Weight 14.5 kg

Rack Installation Support*: 4-post 19" rack (Synology Rail Kit - RKS1317)

Notes: The rail kit is sold separately

Others

System Fan: 80 mm x 80 mm x 4 pcs

Fan Speed Mode

Full-Speed Mode

Cool Mode

Quiet Mode

Temperature

Operating Temperature: 0°C to 35°C (32°F to 95°F)

Storage Temperature: -20°C to 60°C (-5°F to 140°F)

Relative Humidity: 5% to 95% RH

Certification

FCC

CE

BSMI

VCCI

RCM

EAC

CCC

KC

UL

DSM Specifications

Storage Management

Maximum Internal Volume Number: 128

SSD Read / Write Cache (White Paper): V

SSD TRIM: V

RAID Group: V

Supported RAID Type

RAID F1

Basic

JBOD

RAID 0

RAID 1

RAID 5

RAID 6

RAID 10

RAID Migration

Basic to RAID 1

Basic to RAID 5

RAID 1 to RAID 5

RAID 5 to RAID 6

Volume Expansion with Larger HDDs

RAID F1

RAID 1

RAID 5

RAID 6

RAID 10

Volume Expansion by Adding a HDD

RAID F1

JBOD

RAID 5

RAID 6

Global Hot Spare Supported RAID Type

RAID F1

RAID 1

RAID 5

RAID 6

RAID 10
