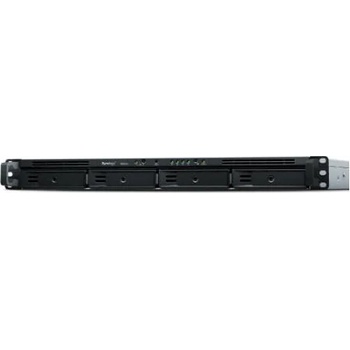

Synology RS822RP+

Synology RS822RP+



Built for reliability

RS822RP+ comes with four Gigabit RJ-45 ports which can be bonded with Link Aggregation to enable automatic network failover and load balancing.

Two RS822RP+ units can be paired using Synology High Availability to form a reliable active/passive server cluster, maximizing service uptime.

Furthermore, the RS822RP+ features a redundant power supply for an extra edge in service continuity.



Specifications:< /strong>

CPU CPU Model AMD Ryzen V1500B    CPU Quantity 1    CPU Architecture 64-bit    CPU Frequency 4-core 2.2 GHz    Hardware Encryption Engine (AES-NI) Yes  Memory System Memory 2 GB DDR4 ECC SODIMM    Memory Module Pre-installed 2 GB (2 GB x 1)    Total Memory Slots 2    Maximum Memory Capacity 32 GB (16 GB x 2)  Storage Drive Bays 4    Maximum Drive Bays with Expansion Unit 8 (RX418 x 1)    Compatible Drive Type*

• 3.5" SATA HDD
• 2.5" SATA SSD

   Hot Swappable Drive* Yes  External Ports RJ-45 1GbE LAN Port* 4 (with Link Aggregation / Failover support)    USB 3.2 Gen 1 Port* 2    eSATA Port 1    Notes

• This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
• The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

 PCIe PCIe Expansion 1 x Gen3 x8 slot (x4 link)  File System Internal Drives

• Btrfs
• EXT4

   External Drives

• Btrfs
• EXT4
• EXT3< /li>
• FAT
• NTFS
• HFS+
• exFAT

 Appearance Form Factor (RU) 1U    Size (Height x Width x Depth) RS822RP+ : 44 mm x 480 mm x 518.6 mm    Weight RS822RP+ : 8.0 kg  Others System Fan RS822RP+ : 40 mm x 40 mm x 2 pcs    Fan Speed Mode

• Full-Speed Mode
• Cool Mode
• Quiet Mode

   Power Recovery Yes    Noise Level* RS822RP+ : 38.8 dB(A)    Scheduled Power On / Off Yes    Wake on LAN / WAN Yes    Power Supply Unit / Adapter 150 W    Redundant Power Supply Yes    AC Input Power Voltage 100 V to 240 V AC    Power Frequency 50/60 Hz, Single Phase    Power Consumption 47.69 W (Access)
16.7 W (HDD Hibernation)    British Thermal Unit 162.83 BTU/hr (Access)
57.02 BTU/hr (HDD Hibernation)  Temperature Operating Temperature 0°C to 35°C (32°F to 95°F)    Storage Temperature -20°C to 60°C (-5°F to 140°F)    Relative Humidity 5% to 95% RH  Certification

• FCC
• CE
• BSMI
• VCCI
• RCM
• UKCA
EAC
• CCC
• KC
• UL





Compatible drives:

 HAT5310-20TТвъ
