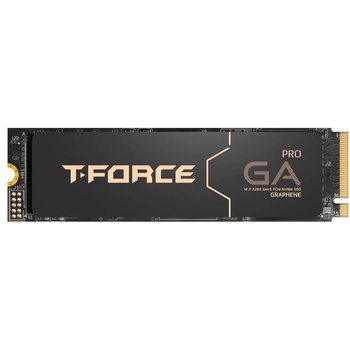

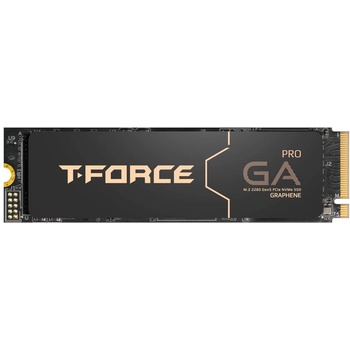

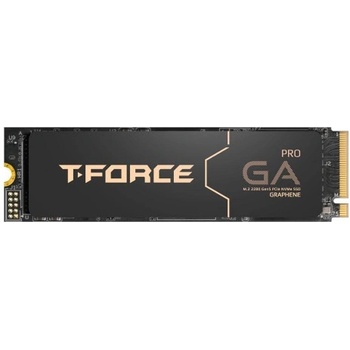

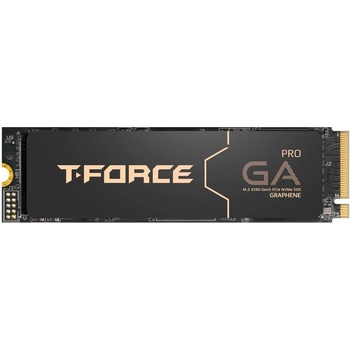

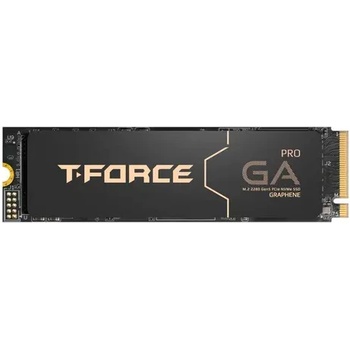

Team Group GA PRO 1TB M.2 (TM8FFJ001T0C129)

T-Force GA PRO

Feature

Gen5 Is beyond Limits, Offering Next-gen Speed Performance
• Multi-core Solution for Performance Evolution
• Data Security Isolation Mechanism
• New Generation Error Correction Technology
• Patented graphene heatsink for enhanced heat dissipation and system operating stability
• S. M. A. R. T. Monitoring System
• Be Eco-friendly and Conserve the Earth
• Patented Graphene Heat Sink
  Invention patent number in the US: US11051392B2
  Innovation patent number in Taiwan: I703921
  Utility model patent number in China: CN 211019739 U
• Patented S. M. A. R. T. Software
  Innovation patent number in Taiwan: I751753

Gen5 Is beyond Limits,
Offering Next-gen Speed Performance

The product delivers a unique high-speed experience
for gamers and users seeking ultimate performance!
The SSD utilizes the latest PCIe Gen5 x4 interface
with support for the latest NVMe 2.0 protocol,
achieving a maximum read speed of up to 10,000 MB/s.

Multi-core Solution
for Performance Evolution

Smart performance is elevated for this product as it automatically adjusts performance based on internal temperature sensing. Featuring the latest low-power design IG5666 controller chip from InnoGrit, the SSD is capable of adapting to different workload states by automatically adjusting to different power consumption operating modes.


Data Security Isolation Mechanism

The strongest isolation for stored data is provided to help prevent malicious attacks on SSD data from external sources. The product is equipped with the enhanced controller Security Isolation feature to ensure a more complete data storage security process.

New Generation Error Correction Technology

The product ensures data accuracy with excellent performance and stability. It adopts the all-new 4K LDPC (Low-Density Parity-Check Code) technology to help extend the lifespan of the SSD.

Interface

PCIe Gen5x4 with NVMe

Voltage

DC +3.3V

Operation Temperature

0˚C ~ 70˚C

Storage Temperature

-40˚C ~ 85˚C

Weight

7g

Dimens ions

80.0(L) x 22.0(W) x 3.9(H) mm with Graphene heat sink
77.0(L) x 24.7(W) x 62.3(H) mm with AirFlow I heat sink

Vibration

80Hz~2,000Hz/ 20G

Shock

1,500G/0.5ms

MTBF

1,600, 000 Hours

Operating System

Compatible with Intel and AMD platforms and has one of the foll owing operating systems:

• Windows 11 / 10 / 8.1 / 8 / 7 / Vista
• MAC OS 10.4 or later
• Linux 2.6. 33 or later
