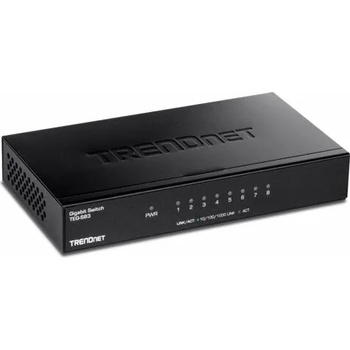

TRENDnet TEG-S83

The 8-Port Gigabit Desktop Switch, model TEG-S83, provides high-bandwidth performance, ease of use, and reliability. This gigabit switch boosts office network efficiency and eliminates network congestion. It features gigabit speeds and a total switching capacity of 16Gbps with full-duplex mode. Integrate this sturdy metal gigabit switch for reliable high-speed network connectivity.

Gigabit Speeds

Gigabit ports provide high-speed network connections to eight devices, and a 16Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.

Compact Design

With a compact and lightweight metal housing design, this gigabit switch is well-suited for desktop installations.

Fanless

Fanless design lowers energy consumption, and eliminates distracting noise for quiet environments that require silent operation.

Switching Capacity

16Gbps switching capacity

Jumbo Frame

This gigabit Ethernet switch sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Housi ng Design

Compact and lightweight metal housing

Specifications

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3ab

• 8 x Gigabit ports
• LED indicators

• Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
• Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
• Gigabit: 2000Mbps (full duplex)

• Switching Capacity: 16Gbps
• RAM Buffer: 192KB
• MAC Address Table: 4K entries
• Forwarding Rate: 11.9Mpps (64-byte packet size)
• Jumbo Frames: 9KB

• Input: 100 – 240V AC, 50/60 Hz, 0.2A
• Output: 5 V DC, 1A external power adapter
• Max. Consumption: 3.2W

• Fanless design

• 1,451, 740 hours

• 0° – 40° C (32° – 104° F)

• Max. 90% non-condensing

• 160 x 25 x 109mm (6.29 x 0.98 x 4.29 in. )

• 414g (14.6 oz. )

• FCC
• CE
