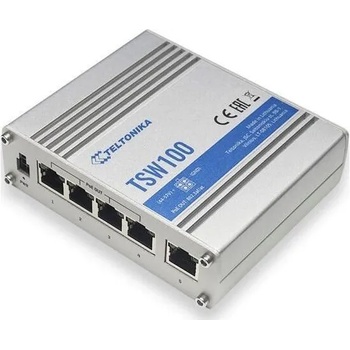

Teltonika TSW100 (TSW100000000)

TELTONIKA NETWORKS TSW100 Industrial PoE+ Ethernet SwitchTELTONIKA NETWORKS TSW100 Industrial PoE+ Ethernet Switch:Manufacturer : TELTONIKA NETWORKSManufacturer Part No : TSW100010000Product Features

• Equipped with five Gigabit Ethernet ports
• Enables centralization of the power supply
• Economical high-bandwidth solution
• Ideal for professional applications
• Rugged aluminum housing

GeneralDevice Type : Switch - 5 ports - unmanagedEnclosure Type : DIN rail mountable, surface-mountable, wall-mountableSubtype : Gigabit EthernetPorts : 5 x 10/100/1000 (4 PoE)Power Over Ethernet (PoE) : PoEPoE Budget : 120 WPerformance : Non-blocking bandwidth: 10 GbpsCapacity : Packet buffer size: 128 KBMAC Address Table Size : 2K entriesJumbo Frame Support : 9216 bytesFeatures : Auto-uplink (auto MDI/MDI-X), PROFINET, ground points, aluminium housingCompliant Standards : IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3atStatus Indicators : Power, statusExpansion / ConnectivityInterfaces : 4 x 1000Base-T RJ-45 PoE - 30 W
1 x 1000Base-T RJ-45PowerPower Device : External power adapterPower Provided : 62 Watt - DC 48 V - 1.3 AVoltage Required : AC 100-240 V (50/60 Hz)Electric Current Required : 1.5 AMiscellaneousCompliant Standards : IP30, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, ANATEL, CB, E Mark, EN 55032:2015, EN 55035:2017, EN 301 489-1 V2.2. 3, EN 61000-4-2:2009, EN IEC 61000-4-3:2006 + A1:2008 + A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014, EN 61000-4-6:2014, EN 61000-4-11:2004, IEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020Localisation : EuropeDimensions & WeightWidth : 11.5 cmDepth : 10.12 cmHeight : 3.22 cmWeight : 350 gDimensions & Weight (Shipping)Shipping Width : 17.5 cmShipping Depth : 15 cmShipping Height : 3.5 cmEnvironmental ParametersMin Operating Temperature : -40 °CMax Operating Temperature : 75 °CHumidity Range Operating : 5 - 95% (non-condensing)Technical data provided by third party. We assume no liability for errors within these data.
