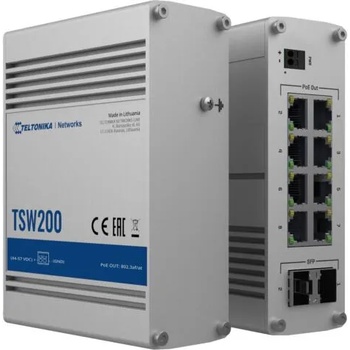

Teltonika TSW200

TELTONIKA NETWORKS TSW200 Industrial PoE+ Ethernet SwitchTELTONIKA NETWORKS TSW200 Industrial PoE+ Ethernet Switch:Manufacturer : TELTONIKA NETWORKSManufacturer Part No : TSW2000000B0Marketing DescriptionTSW200 is an unmanaged industrial switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802. af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power. Product Features

• Resilient design
  With an operating temperature range of -40°C to 75°C, the TSW200 is ideal for harsh environments, ensuring reliable performance under varying conditions.
• Versatile connectivity
  Equipped with eight Gigabit Ethernet ports, this switch offers flexible connectivity options for devices, making it suitable for various networking needs.
• Efficient power delivery
  Featuring PoE+ support, the TSW200 enables efficient power delivery to devices over the same cable as data, simplifying installations and reducing the need for additional power sources.
• Smart mounting solution
  The DIN rail mountable design allows for streamlined installation in any control panel or industrial equipment setup, ensuring easy integration into existing systems.
• Compliance with standards
  Adhering to IEEE 802.3u and IEEE 802.3az standards offers optimized performance and energy savings, ensuring the switch meets modern networking demands.

GeneralDevice Type : Switch - 8 portsEnclosure Type : DIN rail mountableSubtype : Gigabit EthernetPower Over Ethernet (PoE) : PoE+PoE Budget : 240 WPerformance : Non-blocking bandwidth: 20 GbpsCapacity : Packet buffer size: 128 KBMAC Address Table Size : 2K entriesJumbo Frame Support : 9216 bytesFeatures : Auto-uplink (auto MDI/MDI-X), PROFINET, aluminium housingCompliant Standards : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1x, IEEE 802.3az, IEEE 802.3af, IEEE 802.3atStatus Indicators : Power, network, SFPExpansion / ConnectivityInterfaces : 8 x 1000Base-T RJ-45 30 W
2 x LAN SFPPowerPower Device : External power adapter (not included)Voltage Required : DC 7 - 57 VPower Consumption Stand by : 1.81 WattMiscellaneousCompliant Standards : IP30, UKCA, CITC, ANRT, FCC, IC, CB, EN 55032:2015+A1:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 61000-4-2:2009, EN IEC 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-4-11:2020, IEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020Dimensions & WeightWidth : 13.2 cmDepth : 9.51 cmHeight : 4.42 cmWeight : 517 gEnvironmental ParametersMin Operating Temperature : -40 °CMax Operating Temperature : 75 °CHumidity Range Operating : 5 - 95% (non-condensing)Technical data provided by third party. We assume no liability for errors within these data.
TELTONIKA_NETWORKS



.
