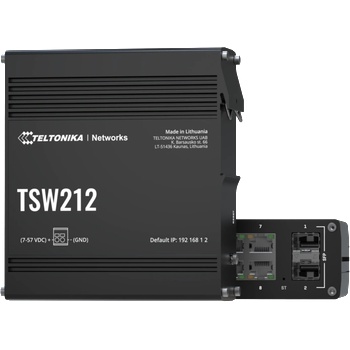

Teltonika TSW212

TELTONIKA NETWORKS TSW212 Layer2/L3 Managed Ethernet switchTELTONIKA NETWORKS TSW212 Layer2/L3 Managed Ethernet switch:Manufacturer : TELTONIKA NETWORKSManufacturer Part No : TSW212000000Marketing DescriptionThe Teltonika TSW212 is an industrial-grade switch designed to meet the demands of modern networks. With its robust data processing capabilities, including a 20 Gbps non-blocking bandwidth and a 14.88 Mpps forwarding rate, it ensures smooth and efficient operation. Security is a priority, with features like RADIUS and TACACS+ authentication providing protection against unauthorized access. The switch's versatile connectivity options, including 8 Gigabit Ethernet ports and 2 SFP slots, make it suitable for a wide range of applications. Its durable, anodized aluminum housing and IP30 protection rating allow it to operate in extreme environmental conditions, from -40 °C to 75 °C. Additionally, the TSW212 supports the Teltonika Remote Management System (RMS), enabling efficient network management and monitoring. Whether deployed in industrial, commercial, or office settings, the TSW212 delivers reliable, secure, and high-speed network connectivity. Product Features

• Robust performance
  Equipped with a non-blocking bandwidth of 20 Gbps and a forwarding rate of 14.88 Mpps, the TSW212 ensures efficient data flow and high-speed connectivity for all connected devices.
• Enhanced security
  Featuring advanced authentication methods including RADIUS and TACACS+, along with DHCP Snooping, the TSW212 provides a secure networking environment by preventing unauthorized access.
• Versatile connectivity
  With 8 RJ-45 ports for 10/100/1000 Base-T connections and 2 SFP slots for 1000Base-X, the TSW212 offers flexible options for linking a wide range of devices and extending network reach.
• Durable design
  Housed in an anodized aluminum casing with IP30 protection, the TSW212 is built to withstand harsh industrial environments, ensuring reliable operation in temperatures ranging from -40 °C to 75 °C.
• Intelligent management
  Support for Teltonika Remote Management System (RMS) alongside SNMP 2 and SNMP 3 protocols enables efficient monitoring and management of network resources, enhancing system reliability.

GeneralDevice Type : Switch - 8 ports - ManagedEnclosure Type : DIN rail mountable, surface-mountableSubtype : Gigabit EthernetPorts : 8 x 10/100/1000 + 2 x SFPPerformance : Non-blocking bandwidth: 20 Gbps
Forwarding rate: 14.88 MppsCapacity : Packet buffer size: 512 KBMAC Address Table Size : 8K entriesJumbo Frame Support : 10000 bytesRouting Protocol : STP, RSTP, static IPv4 routing, static IPv6 routingRemote Management Protocol : SNMP 3, SNMP 2, DHCP, RADIUSAuthentication Method : RADIUS, TACACS+Features : Auto-uplink (auto MDI/MDI-X), EtherNet/IP enabled, PROFINET, LLDP support, VLAN support, MRP support, loop protection, DHCP server, DHCP client, port isolation, EEE, port mirroring, DHCPv6 client, PAM, PSK, QoS, DSCP prioritisation, ToS, rate limit, Storm Control, traffic shaping, Teltonika RMS, FOTA, reset button, ground points, anodised aluminium housingCompliant Standards : IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3azRAM : 128 MB DDR3 SDRAMFlash Memory : 16 MBStatus Indicators : Power, AUX, Ethernet link/activity, SFPExpansion / ConnectivityInterfaces : 8 x 10/100/1000 Base-T RJ-45
2 x 1000Base-X SFPPowerVoltage Required : DC 7 - 57 VMiscellaneousCompliant Standards : IP30, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH, NBTC, EN 55032:2015+A1:2020+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN 61000-4-2:2009, EN IEC 61000-3-2:2019+A1:2021, EN 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-4-11:2020, IEC 61000-4-3:2020, AS/NZS 62368-1:2022, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018Software / System RequirementsSoftware Included : WitchOSDimensions & WeightWidth : 13.2 cmDepth : 12.22 cmHeight : 4.42 cmWeight : 615 gEnvironmental ParametersMin Operating Temperature : -40 °CMax Operating Temperature : 75 °CHumidity Range Operating : 10 - 90% (non-condensing)Technical data provided by third party. We assume no liability for errors within these data.
