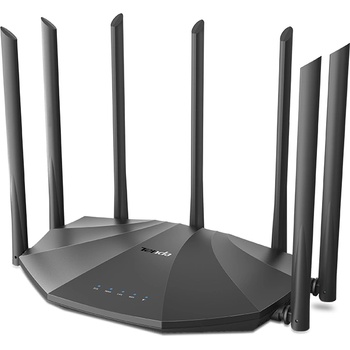

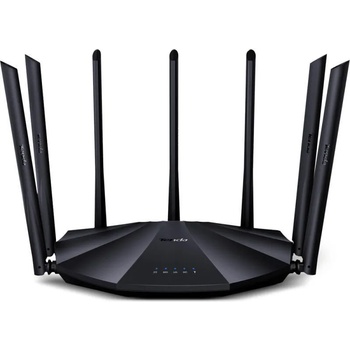

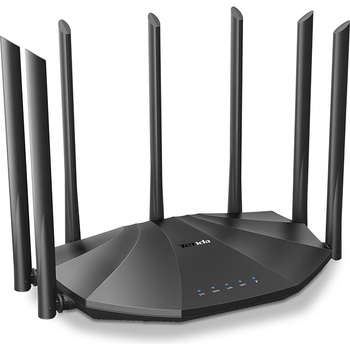

Tenda AC23 AC2100















AC2100 for Advanced WiFi Speed

AC23 is a dual-band gigabit wireless router, adopted with 802.11 ac wave2 techonology and provides speed up to 2033 Mbps to get the most out of your gigabit fiber internet.











4x4 MU-MIMO for 5GHz Band

Powered by 4X4 MU-MIMO techonology of 5 GHz band, it provides wider WiFi coverage and faster WiFi speed than regular routers with 3X3 MU-MIMO techonology.











Built-in Signal Amplifier for Main Chip

Built-in signal amplifier used both on 2.4GHz and 5GHz bands of AC23 to enhance the penetration capability and expand the WiFi coverage.











7*6dBi External Antennas for Better WiFi Signal

With 7*6 dBi external antennas and four data streams of 5Ghz band, the AC23 can provide optimized WiFi coverage and better 5GHz WiFi signal.











Support Fiber Internet Up to 1000Mbps

Equipped with full gigabit ports, it supports up to 1000Mbps bandwith access.







Specification:

Hardware Specification:

Standards

IEEE802.3, IEEE802.3u, IEEE802.3ab

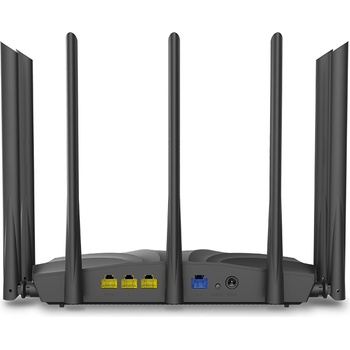

Interface

1*10/100/1000Mbps WAN port

3*10/100/1000Mbps LAN ports

Antenna

7*6dBi external antennas

Button

1* WPS/Reset button,

Power

Input：AC 100-240V~50/60Hz 0.6A

Output：DC 12V1.5A

Dimensions

238.9*144.3*40.3mm

LED Indicator

Sys*1, WAN*1, LAN*1, WiFi/WPS*1

Wireless Features:

Wireless Standards

IEEE 802.11ac wave2/a/n 5GHz

IEEE 802.11b/g/n 2.4GHz

Environment

5GHz: Up to 1733Mbps

2.4GHz: Up to 300Mbps

Frequency

2.400-2.4835GHz

5.150-5.250GHz

Transmit Power

CE:
