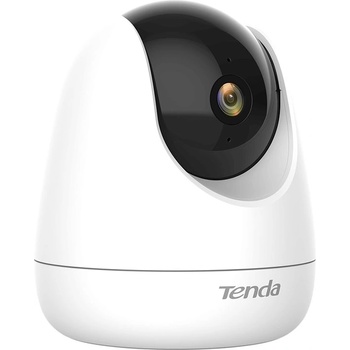

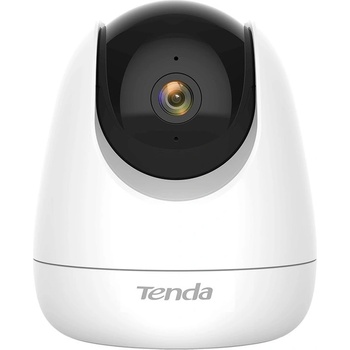

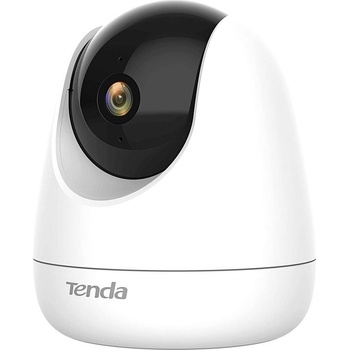

Tenda CP6

Tenda CP6

The security Pan/Tilt Camera-CP6, is a high-performance home surveillance Camera that integrates 360° visual coverage with 2K resolution. It is also fetured with full-duplex two-way audio, smart-motion detection/tracking, sound and light alarm functions. The product is mostly used for indoor scenarios monitoring such as homes, shops, offices and classrooms, etc. The users can access the video via wireless or wired connection to the router.





2K Super HD, Videos with more detailsEquipped with 2K resolution sensor, CP6 shows more image details. CP6 also optimizes face capture and compensates backlight areas by WDR technique.



 Human Shape Detection for Safety ProtectionBased on AI deep learning algorithms, CP6 can detect human shape and other motion. It recognizes the movement accurately and captures suspicious status automatically, and the resulting alarms will be sent to your mobile in real time.







Specifications:



Hardware

Pan/Tilt

Horizontal rotation:355°, All-round Vision:360° Vertical, rotation: 155°(90° up, 65° down), Support physical shutter lens

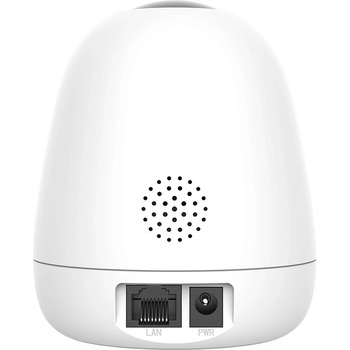

Ports

Storage: Micro SD card (Up to 128G, Class10 and above storage card)
Power: DC 9V＝1A
Ethernet: One RJ45, 10M/100M auto-negotiation Ethernet port



Lens

[email protected]



Button

Reset x 1



LED Indicator

Dual color (red & blue) LED indicator x 1



Antenna

Internal antenna



Product Size

103 mm x 88 mm x 88 mm





Video

Resolution

2304 x 1296



Coding Standard

H. 265



Day and Night Shift Mode

ICR infrared filter type



Noise Reduction

3D digital noise reduction



DWDR

Support



Backlight Compensation

Support



ROI

Support





Wireless

Wireless Standard

IEEE 802.11b/g/n @2.4GHz



Wireless Rate

150 Mbps



Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK





Others

Smart Alarm

S-motion detection&Human Shape detection



Alarm

Sound and light alarm



Audio

Full-duplex two-way audio



DIY Audio

Up to 3 personalized audio



Auto Patrol

6 preset patrol location



Night Vision Distance

12 Meters (40ft) (Depending on environment)



Temperature

Operating temperature: -10℃~ 50℃
Storage temperature: -40℃~70℃



Humidity

Operating humidity: 10%-95%RH (non-condensing)
Storage humidity: 3% ~ 95%RH (non-condensing)



Certification

CE, RoHs, FCC, RCM
