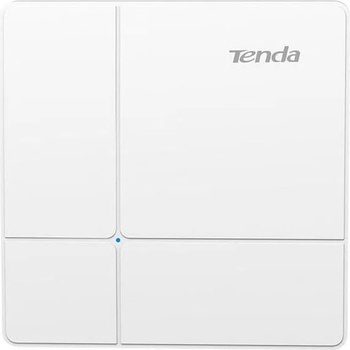

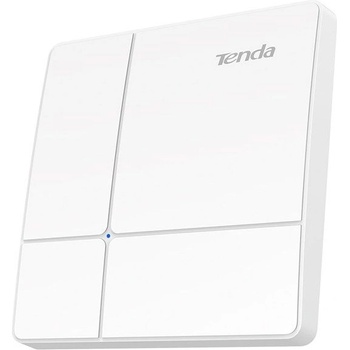

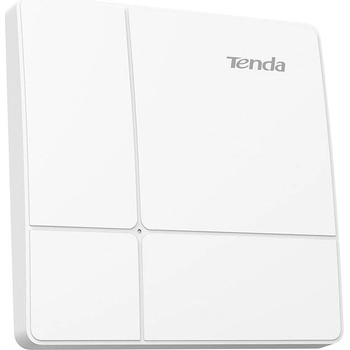

Tenda i24

Tenda I24

i24 is a gigabit dual-band ceiling access point that compliant with IEEE 802.11ac Wave 2, and offers a concurrent data rate up to 1167 Mbps. Powered by MU-MIMO technology, letting you enjoy better experience. And the built-in omni-directional antennas broaden the wireless coverage of a single AP. In addition, you are allowed to adjust its transmit power as required using the web UI, and use an IEEE 802.3at-compliant PoE sourcing equipment to power on it, achieving long-distance power supply without tampering your existing grid network. You are also allowed to use Tenda access controllers (AC) to configure and manage multiple i24 in a centralized manner.





Gigabit internet connections for ultra-fast experienceUp to 1317 Mbps dual-band data rate, and the 1000 Mbps Ethernet port let you enjoy ultra-fast internet connections.





IEEE 802.11ac Wave 2 and MU-MIMOA single can communicate with multiple wireless clients at one time, letting you enjoy higher throughput and better experience.





Dual-band for more connected clientsAllows clients that support either 2.4 GHz or 5 GHz band , or both to connect to it at the same time, tripling the quantity of connected clients of traditional single-band AP.





Resource allocation fairness for reliable wireless networkFeaturing air interface scheduling, it could evenly allocate air interface resources, thus improving your wireless network speed as a whole by preventing clients with low data rate from consuming too much network resources. What's more, it also allows you to customize the RSSI threshold value, so that you can disconnect clients that do not reach the RSSI.





Standard PoE sourcing and DC power supply for easy deploymentYou can use an IEEE 802.3at-compliant PoE sourcing equipment, or a DC power adapter to power on it.





Specifications:

Hardware

Dimension

178 × 178 × 38mm



Ethernet Interface

1 x 10/100/1000 Base TX



Antenna

2.4GHz: 2 x 4dBi
5GHz: 2 x 4dBi



Button

1 x RESET



LED Indicator

1 x SYS



Maximum Power Consumption
