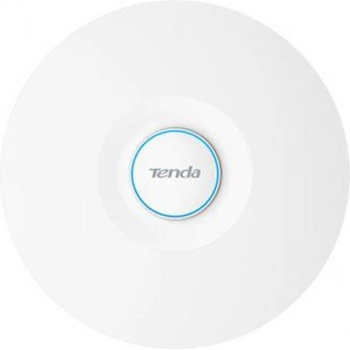

Tenda I29

Tenda i29

Strong Signal, Large Coverage

One AP for whole office building





4 High-Performance Signal Amplifiers
Coverage up to 500㎡ 4 independent high-performance FEM provide wider coverage, stronger penetration, 500㎡ high-speed network coverage.





OFDMA and MU-MIMO technology
Smooth access for 150 devices OFDMA and MU-MIMO technologies greatly enhance the channel capacity, allowing for more efficient data transmission, reducing lag and providing access for 150 devices at the same time.





802.11k/v/r seamless roaming,
Strong Wifi on the go When moving within the coverage area, device automatically connects to the AP node with best signal.





IEEE 802.3af/at Supported
Easy installation and deployment Two 10/100/1000Mbps Gigabit ports support for 802.3at standard PoE, making installation and deployment easier.





Specifications:

Dimension Φ250.6*55 mmEthernet Interface One 10/100/1000 Mbps Ethernet Port
One 10/100/1000 Mbps Ethernet Port (PoE)Antenna 4*4 dBiButton 1*ResetLED Indicator RGBMaximum Power Consumption 15.74 WPower supply standard IEEE 802.3at PoEFrequency Band 2.4 GHz, 5 GHzData Rate 2.4 GHz data rate:1-574 Mbps
5 GHz data rate:6-2402 MbpsWireless Standard IEEE 802.11a/b/g/n/ac/axChannel width 20 MHz/40 MHz/80 MHz/160 MHzMax Transmit Power 2.4 GHz Max. output power:29+/-1.5 dBm
5 GHz Max. output power:29+/-1.5 dBmSensitivity 802.11b RX sensitivity:-97 dBm
2.4 GHz 802.11n (MCS7) RX sensitivity:-75 dBm
5 GHz 802.11a RX sensitivity:-95 dBm
5 GHz 802.11n (MCS7) RX sensitivity:-75 dBmMU-MIMO 2X2 MU-MIMOOperating Mode APHide SSID SupportedMax. No. of SSID 2.4 GHz: 7
5 GHz: 4Max. connected clients 254WEP Supported802.11 k/v SupportedFast roaming SupportedTWT SupportedBeamforming SupportedOFDMA SupportedWPA-PSK AES/TKIPWPA2-PSK AES/TKIPWPA3-ASE AESWPA SupportedWPA2 SupportedAccess control MAC address-basedAdjustable power transmit SupportedAP isolation SupportedFrequency analysis SupportedConnected clients control SupportedRSSI Threshold SupportedVLAN tagging for SSID SupportedLED control SupportedDiagnostics Ping, TracerouteSchedule Reboot SupportedReboot at specified interval SupportedCentralized Management SupportedSystem Logs SupportedFirmware upgrade SupportedReboot SupportedBackup configuration SupportedRestore configuration SupportedDefault login IP 192.168. 0.254Default Login Username adminDefault Login Password adminOperation Temperature -10℃ - 45℃Operating humidity (10% - 90%) RH, non-condensingStorage temperature -30℃ - 70℃Storage humidity (10% - 90%) RH, non-condensing
