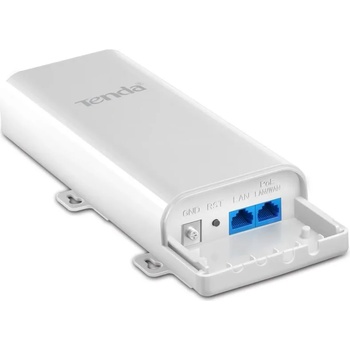

Tenda O3

Tenda O3

O3 2.4GHz Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology, two CPE can connect to each other automatically to make it easy to setup.

  2.4GHz 11n 150Mbps

  12dbi directional antenna

  IP64 waterproof enclosure

  6000V Lightning Protection

  AP, Station, WISP operating mode supported

  Up to 60 meters of flexible deployment with included PoE Injector





5km+ transmission RangeO3 adopts of independent power amplifier and 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 5km.





Auto-bridge For Two DeviceO3 adopts of auto-bridge technology, two cpe can connect to each other when you power on them face to face. It is very easy to setup for CCTV surveillance and data.





Smart Signal Indicator LED3 signal LED Lights represent the currently signal strength that O3 receives from peer device. It is helpful to find the right location to deploy the device and achieve a better performance.



 Professional Outdoor DesignEquipped with IP64 waterproof enclouse and high quality hardware design, O3 can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment





Specifications:



Информац ия за продукта

Изме рение

270*94.86*67.5mm

Разгръщане

Pole Mount/Wall Mount

Сценарии за приложение

PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance



Ха рдуер

Честоте н диапазон

2.4GHz

Съ ответстващи стандарти

IEEE 802.11b/g/n

Максимална безжична скорост

150Mbps

Ин
