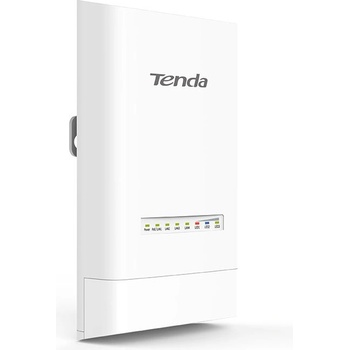

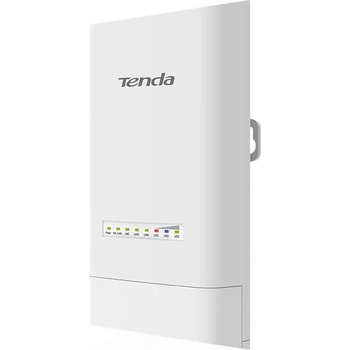

Tenda OS3 5GHz 12dBi 11AC

Tenda OS3

OS3 5GHz Outdoor CPE is designed to PtP&P2MP solution for video surveillance transmission and wireless broadband access. Adopts of 11ac wireless technology, the maximum wireless rate can be up to 867Mbps. It features with 12dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable long range connection.

Main Features

•   5GHz 11AC 867Mbps
•   12dBi directional antenna
•   Four fast ethernet port
•   IP65 waterproof enclosure
•   6000V lightning protection
•   12V 1A DC/12V 1A passive PoE supported







5+km transmission rangeOS3 adopts of internal power amplifier and 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 5km.





Flexible power supply method enable it easy to deploymentOS3 supports 12V 1A Passive PoE and 12V 1A DC power supply option. It helps the engineer to deploy the device flexiblely.





TD-MAX--Tenda TDMA proprietary protocolTD-MAX is Tenda TDMA (Time Division Multiple Access) proprietary protocol to improve performance and capacity for wireless P2MP outdoor application scenarios. In outdoor environment, the CPE use highly directional antennas to connect to the Basestation from distances that can span several kilometers. the CPE can't sense each other, they become "hidden nodesand cannot coordinate access to the wireless channel. Thus the Basestation experiences frequent collisions from stations transmitting simultaneously. As the network scales, these collisions build up exponentially, increasing latency and lowering throughput. With TD-MAX, it coordinate all the data transmission and allocates time to active clients to provide greater noise immunity performance when compared to the conventional 802.11 CSMA/CA (Carrier Sense Multiple Access / Collision Avoidance) protocol.





Auto-bridge technology enable it to easy setupOS3 supports auto-bridge technology, It enables the CPE or basestation in factory default settings to connect to each other automaticaly after the device is powered on. It is very useful for the person who is not familiar with network knowledge, especially for CCTV surveillance transmission application.





Professional Outdoor DesignEquipped with IP65 waterproof enclouse and high quality hardware design, OS3 can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment



Specifications:



Информац ия за продукта



Измерение

193*109*61mm

Разгръщане

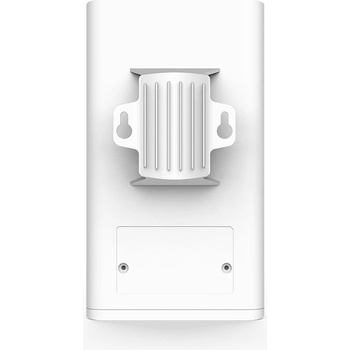

Pole/Wal l Mount

Сценарии за приложение

PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance





Хардуер

Че тотен диапазон

5GHz

Съо тветстващи стандарти

IEEE 802.11a/n/ac

Максимална безжична скорост

867Mbps

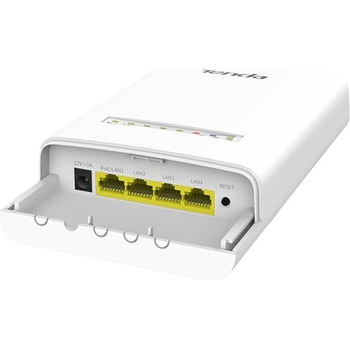

Ин ерфейси

4*10/100 LAN Port

Поляризация на антената

-

Усил ане на антените

12dbi

Ши ина на лъча на антената

Horizontal: 30° Vertical: 30° Elevation: 30°

GND

-

Бутон за рестартиране

1

онсумация на енергия

4.7W

Водо устойчиво ниво

IP65

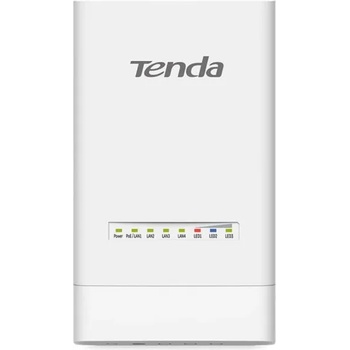

Лед индикатор

Power, PoE/LAN1, LAN2, LAN3, LAN4LED1, LED2, LED3

Метод на захранване

12V 1A Passive PoE
12V 1A DC

Мълниезащита

6000V

Пасивно PoE

Passive power over ethernet via PoE/LAN (+4,5pins -7,8pins ) up to 60 meters
Voltage range: 9-13V DC

Чувствителност на приемане

11a 6Mbps -92dBm±1.5dBm
11n MCS7 HT20 -72dBm±1.5dBm
11ac MCS9 HT80 -64dBm±1.5dBm





< strong>софтуер

TDM A

-

Работен режим

AP/Station/WISP/P2MP/WD S Repeater/Router

Активиран е/деактивиране на безжичното радио

Support

SSID е скрит

Support

Безж чна изолация на клиента

Support

SSID изолация

Support

П опускателна способност на канала

20/40/80MHz

П еместване на канала

-

Безжич н контрол на достъпа

Support

Ог аничение на клиента със слаб сигнал

Support

Мощ ост на предаване

Adjustable power by 1dBm

Възможност за WMM

Support

Възможно ст за APSD

Support

Безжичн сигурност

64/128 WEP, WPA-PSK, WPA2-PSK, WPA&WPA2-PSK, WPA, WPA2

Прозрачен мост

Support

VLAN маркиране за SSID

Support

DHCP сървър

Support

VPN Pass-through

PPTP, L2TP

Отдалечен уеб достъп

Support

Пла ирайте рестартиране

Support

Време за изчакване на страницата

Support

Пинг пазач

Support

Dynndns

noip, dyndns. org

Мрежови диагнози

Ping, Traceroute, Signal Scan

Time and Date Setting

Support

Надстр ойка на фърмуера

Support

К нфигурация за архивиране/възстанов ване

Support

Управ ление на потребителско име

Support

Систем и регистрационни файлове

Support

Уп авлява се от контролер

PC Software -- CPE Assistant





други

Работн а температура

-30℃ ~ 60℃

Температура на съхранение

-40℃ ~ 70℃

Работна влажност

10%~90% non-condensing

Влажност на съхранение

10%~90% non-condensing

IP за вход по подразбиране

192.168. 2.1

Потребителско име за вход по подразбиране

admin

Парола за вход по подразбиране

admin
