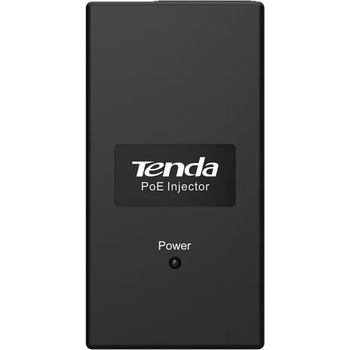

Tenda PoE15F

Tenda PoE15F

PoE injector PoE15F can realize the synchronous transmission of network data and power through an Ethernet cable (Cat. 5 or better). The output power of each port is as high as 15W, which can be exported as PoE equipment (via RJ45 port). You can connect to ieee802.3af's PD, such as wireless AP, IP camera, IP phone, etc. In a sense, reducing installation costs and improving network performance is a good choice.

>> Delivers power and data through one Ethernet cable for easy network extension
>> Compatible with IEEE 802.3af compliant powered devices
>> PoE Port Delivers power up to 100 meters
>> Plug and Play, no configuration required







Power Over Ethernet

One PoE port to power connected devices for flexible network deployment





IEEE 802.3af compliant

Compatible with IEEE 802.3af compliant powered devices






Extend Power Supply
Distance of power transmission via Ethernet cable is up to 100 meters





Specifications:

Network standards IEEE802.3、IEEE802.3uLED Indicator Link/Act , PoE StatusInterfaces 1*10/100 Base-TX Ethernet ports(Data/PoE)
1*10/100 Base-TX Ethernet ports(Data)Transmission media Recommended: CAT5/5e UTP or betterDimension 84.5mm*44mm*29.8 mmLevel of protection ESD:
Air discharge: ±10kV
Contact discharge: ±8kVForwarding mode Store-and-forwardTransmission Rate 100MbpsPoE budget Single port: AF: 15.4W
Whole device: 15WPower consumption 15WInput voltage 100－240V AC 50/60Hz
48V/0.3A DC（Power Adapter Output）Mounting Desktop mounting: supportEnvironment Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensingCertification FCC、CE、RoHS
