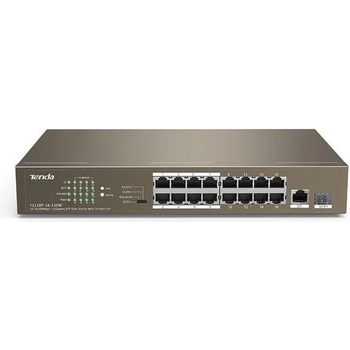

Tenda TEF1118P-16-150W

Tenda TEF1118P-16-150W





GE & SFP uplink ports，Large Buffer of Nearly 3MWith one 10/100/1000 Mbps combo SFP slot, the switch can meet the current demand for uplink bandwidth of Gigabit WLAN and HD digital surveillance. Working with Tenda optical fibermodule TEG311SM, the switch supports a maximum transmission distance up to 20km.





6KV Excellent Lightning ProtectionThe switch offers various safety and protection types, including 6 kV lightning protection, PSE short-circuit protection, PoE overload protection, surge current protection etc, and these greatly protect the switch from being damaged by thunderstorm. Besides, it supports wide voltage input, AC：100-240V~50/60Hz.





Cascading with 6 Devices
Can Support IP Surveillance Project of up to 96 Cameras In the number of about 100 terminals accessed to the network, cascading 6 devices through the G1、G2/SFP2can achieve up to 96-channel monitoring, according to the project , it supports 300W/500W IP Caccessed and ensure stable video transmission without breaking up. If the both ends of devices are connected to the NVR, the video can be watched locally.





4 Modes for Different NetworksStandard mode, Port-based Priority mode, Port-based VLAN mode and Extend mode make TEF1118P-16-150W be able to deal with different networks，special for small & Medium-sized IP surveillance & WI-FI coverage project.









Specifications:

Network standards IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/atLED Indicator 16 * Link/Act LEDs
1 * G1 LED
1 * G2/SFP2 LED
1 * PoE-MAX LED
1 * Power LEDInterfaces 16 * 10/100 Base-TX Ethernet ports (Data/Power)
2 * 10/100/1000 Base-T Ethernet ports (Data)
1 * 1000 Base-X SFP port (Combo)Transmission media Recommended: CAT5/5e UTP or betterFan quantity N/ADimension 294.0mmx178.8mmx44.0mmLevel of protection Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kVForwarding mode Store-and-forwardSwitch capacity 7.2 GbpsPacket forwarding rate 5.36 MppsBuffer 1.25MbMAC address table 4KJumbo frame N/APoE budget Single port: AF: 15.4W, AT: 30W
Whole device: 130WPower consumption /Input voltage 100-240V AC 50/60HzMounting Desktop mounting: support
Wall mounting: support
Rack mounting : supportEnvironment Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensingCertification FCC、CE、RoHS
