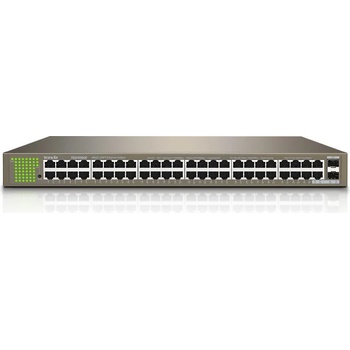

Tenda TEG1050F

Tenda TEG1050F

Better Choice For High-Density & High-Speed Networking





No need for cascading with sufficient ports
Feature wire-speed forwarding for efficient communicationIt provides 48 10/100/1000M auto-negotiation RJ45 ports and 2 1000M independent SFP slots, its full-duplex transmission rate can reach 2000 Mbps.
Compared with the traditional connection method of cascading two 24-port Gigabit switches, its high-density ports can easily solve the problems of large space occupation and high failure rate encountered in the project.





Dual 6kV Lightning ProtectionThis switch provides 6 kV lightning protection for both Ethernet ports and the power supply,
and supports over-temperature, over-voltage and surge current protection.



12 Mb Large BufferWith 12 Mb large buffer, the switch can meet the needs of such network applications with burst traffic as search engine, IPTV, and P2P downloads, ensuring no packet loss, timely transmission of large files, and smoothness of videos.





Various Mounting OptionsIt supports Desktop/Wall/Rack Mounting,
and is flexible & practical enough for actual network engineering.



Specifications:



Hardware

Network standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z



LED Indicator

1* Power, 50* Link/Act, 1*VLAN



Interfaces

48*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
2*1000 Base-X SFP ports (Independent)



Transmission media

Recommended: CAT5/5e UTP or better



Fan quantity

N/A



Dimension

440.0mmx240.0mmx44.0mm



Material

Metal



Level of protection

Lightning protection for uplink ports: 6KV
Lightning protection for power: 6KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV



Forwarding mode

Store-and-forward



Switch capacity

100Gbps



Packet forwarding rate

74.4Mpps



Buffer

12Mb



MAC address table

16K



Jombo frame

12K



Power

Input: 100 - 240V AC 50/60Hz
Output: 12V 4A



Power consumption

Max:
