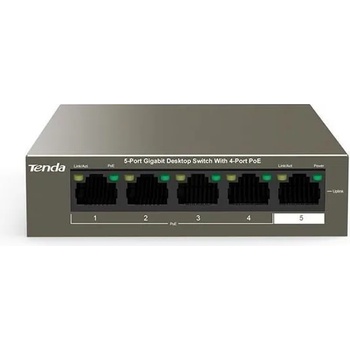

Tenda TEG1105P-4-63W

Tenda TEG1105P-4-63W





One-Key VLANIf "VLAN mode" is enabled, Port 1-4 will be isolated respectively but can communicate with the port 5. Hardware DIP switch to isolate ports to prevent broadcast storm and defend against DHCP spoofing.





6KV lighting protection PoE switch is the real monitoring private switchIn real project, APs or cameras are usually installed in outdoor or a higher position, which also increases the camera and PoE switches the probability of lightning shock. The result is the individual equipment damaged, or lead to the whole local area network (LAN) paralysis. Tenda TEF11 series switches have professional lightning protection design - up to 6KV port and power supply thunder prevents, with two levels of protection design respectively, effectively restrain the power of lightning from cable, which is equivalent to give the entire network monitoring system with a security fence, The test standard is much higher than the national CE request. In thunderstorms weather, it can also provide monitoring network stable and reliable services and protect the images transmission normally.





58W PoE power supplyPorts 1-4 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 58W, whereas each port offers a maximum PoE power output of 30 W. The ports can be used to supply power to and exchange data with APs and IP cameras.





Specifications:

Network standards IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3atLED Indicator 5* Link/Ack LED indicators
1 * Power LED indicatorInterfaces 5*10/100/1000 Base-T Ethernet
Ports(Data/Power)
1*10/100/1000 Base-T Ethernet Port(Data)Transmission media Recommended: CAT5/5e UTP or betterFan quantity N/ADimension 100.0mmx100.0mmx27.0mmLevel of protection Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kVForwarding mode Store-and-forwardSwitch capacity 10 GbpsPacket forwarding rate 7.44MppsBuffer 1MMAC address table 2KJumbo frame N/APoE budget Single port: AF: 15.4W, AT: 30W
Whole device: 58WPower consumption /Input voltage 100－240V AC 50/60Hz
51V /1.25A DC（Power Adapter ）Mounting Desktop mounting: support
Wall mounting: support
Rack mounting:non-supportEnvironment Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensingCertification FCC、CE、RoHSFuntions Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
VLAN: In this mode, 1-4 ports of the switch cannot communicate with each other, but can communicate with the 5 port . Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing。
