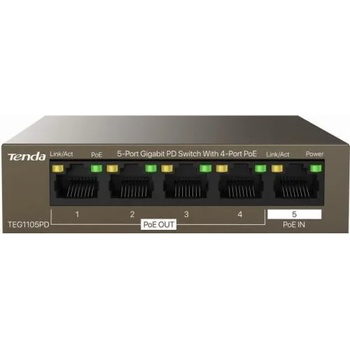

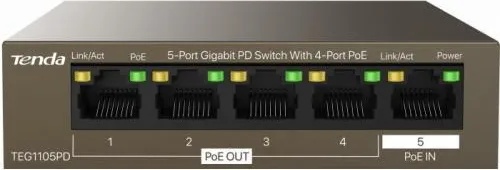

Tenda TEG1105PD

TEG1105PD

5-Port Gigabit PD Switch With 4-Port PoE

Featuring low cost, high performance and plug & play, the PoE switch TEG1105PD is both a PSE and a PD, designed for such surveillance networking scenarios as roads in parks/communities, medium to large factories, and colleges. Small and delicate, it can be installed in an outdoor waterproof box easily. The switch provides four 10/100/1000 Mbps PoE OUT ports (ports 1 to 4) compliant with IEEE 802.3af and one 10/100/1000 Mbps PoE IN port (port 5) compliant with IEEE 802.3af/at. The maximum PoE output power of the whole switch is 30 W. The switch can supply power and transmit data to low-power APs and IP cameras through CAT5 cables, greatly reducing the cost of the network deployment. It is an ideal choice for wired networking in monitoring scenarios of middle to long distance.



Specifications:



Hardware



Network standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at



LED Indicator

1* Power LED indicator

4* PoE LED

indicators

5* Link/Act LED indicators



Interfaces

4*10/100/1000 Base-T Ethernet Ports(Data/PoE

UT)

1*10/100/1000 Base-T Ethernet Port(Data/PoE IN)



Transmission media

Recommended: CAT5/5e UTP or better



Fan quantity

N/A



Dimension

100.0 mm x 100.0 mm x 26.0 mm



Level of protection

Lightning protection for ports: 6kV

Lightning protection for power: 6kV

ESD:

Air discharge: ±10kV

Contact discharge: ±8kV



Forwarding mode

Store-and-forward



Switch capacity

10 Gbps



Packet forwarding rate

7.44Mpps



Buffer

1 Mb



MAC address table

2K



Jombo frame

9K



PoE budget

Single port: AF: 15.4W



Power consumption

/



Input voltage

50-57V DC, 0.6A



Mounting

Desktop mounting: support

Wall mounting: non-support

Rack mounting : non-support



Environment

Operating Temperature: 0℃~45℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing



Certification

FCC、CE、RoHS
