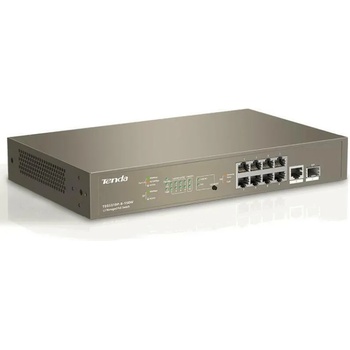

Tenda TEG5310P-8-150W

Tenda TEG5310P-8-150W



 Layer-3 Routing Engine，High-Efficiency Fast ForwardingSupports Layer 3 www routing protocols, supports Layer 3 forwarding of up to 400+ terminals, easily meets Layer 3 routing and forwarding across network segments, and truly achieves Layer 2 network isolation and Layer 3 network interworking. Compared with using a Layer 2 switch for transmission, there is no need to go through a router, and the forwarding speed is faster!





 Map VisualizationIt supports auto discovery of ONVIF based IP camera and access point, and also supports automatically topology generate.





Supports Layer 2 And Layer 3 ACL，For More Secure AccessSupport strict access control based on MAC address or IP address, which can filter the corresponding data packets to enhance user network security. It can be used for network deployment of government, medical and other units.





Specifications:

Network standards IEEE802.3、 IEEE802.3u、 IEEE802.3ab、 IEEE802.3z、 IEEE802.3x、 IEEE802.3af/at、 IEEE802.1p、IEEE802.1q、 IEEE802.1w、 IEEE802.1d、 IEEE802.1sLED Indicator 1*Link/Act or PoE LED indicator
1*Link/1*Link/Act mode converting LED indicator
1*PoE mode converting LED indicator
1*PoE Max LED indicator
1*Power LED indicator
1*SYS LED indicatorInterfaces 8*10/100/1000 Base-T Ethernet ports (Data/Power)
1*10/100/1000 Base-T Ethernet ports (Data)
1*1000 Base-X SFP ports (Data)Transmission media Recommended: CAT5/5e UTP or betterFan quantity N/ALevel of protection Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kVForwarding mode Store-and-forwardSwitch capacity 20GbpsPacket forwarding rate 14.90MppsBuffer 12MbMAC address table 16KJumbo frame 10KPoE power supply management SupportPoE budget Single port: AF: 15.4W, AT: 30W
Whole device: 130WInput voltage 100-240V AC 50/60HzPower consumption Full load: ＜160W
Empty load: ＜12WDimension 294.0mmx179.6mmx44.0mmMounting Desktop mounting: support
Wall mounting: support
Rack mounting:non-supportEnergy Efficient SupportEnvironment Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensingCertification FCC、CE、RoHSL3 Features VLAN-based routing
IPv4 static routing adding
Static ARP adding/deleting
ARP aging time configurationPoE power supply management Supports port PoE configuration and power supply with priority
Supports PoE over-temperature protection
Supports PoE scheduled management
Supports intelligent management and PoE-powered device detection
(port status, power assignment and PoE-powered device status)Security features ARP receiving limit
Unknown MAC address discard
DoS attack defense
802.1x security authentication
Radius security authenticationVLAN IEEE 802.1Q VLAN
VLAN Layer-3 interfaces
Supports three port modes: Access, Trunk and HybridDHCP Server DHCP Server
DHCP Relay
DHCP Snooping
Supports Option 82 policy configurationPort aggregation Static aggregation
LACP dynamic aggregationSpanning tree IEEE 802.1d STP (Spanning Tree Protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Supports edge port
Supports BPDU statisticsMulticast IGMP Snooping V1/V2/V3
Supports port fast leavePort Mirroring Supports N: 1 port mirroringQuality of Service SP (Strict Priority)
SWRR (Simple Weighted Round Robin)
WRR (Weighted Round Robin)
Supports 802.1p port trust mode
Supports DSCP port trust mode
Supports a maximum of 8-queue service quality mappingACL Supports MAC ACL and IP ACLLoading and upgrade Supports FTP/TFTP/HTTP upgrade
Supports configuration import and exportManagement and maintenance Supports Telnet
Supports SNMP V1/V2/V3
Supports WEB management and maintenance
Supports Ping/Tracert/Connection Detection
CPU Monitoring and memory monitoring
Local visualization management
