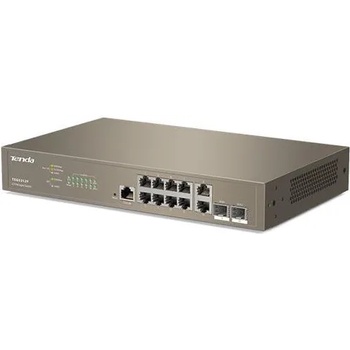

Tenda TEG5312F

Tenda TEG5328F





Layer-3 Routing Engine，High-Efficiency Fast ForwardingSupports Layer 3 www routing protocols, supports Layer 3 forwarding of up to 400+ terminals, easily meets Layer 3 routing and forwarding across network segments, and truly achieves Layer 2 network isolation and Layer 3 network interworking. Compared with using a Layer 2 switch for transmission, there is no need to go through a router, and the forwarding speed is faster!





 Map VisualizationIt supports auto discovery of ONVIF based IP camera and access point, and also supports automatically topology generate.





12M Large Buffer, No Fear of Burst Traffic12M large buffer design, which is three times than other brands in the same gear.





Flexible QoS, Precise Traffic ControlThe TEG5312F supports three QoS scheduling modes (SP, SWRR, WRR) for more accurate traffic control. After the QoS function is enabled, the traffic in the network will be precisely controlled according to the priority of the label. It will prioritize important traffic and reduce the proportion of data flows that occupy a large amount of insignificant traffic in the condition of limited bandwidth，in order to better meet the current transmission needs.





Specifications:

Network standards IEEE802.3、 IEEE802.3u、 IEEE802.3ab、 IEEE802.3ad、 IEEE802.3z、 IEEE802.3x、IEEE802.1p、 IEEE802.1q、 IEEE802.1w、 IEEE802.1d、 IEEE802.1sLED Indicator 1*Link/Act LED indicator
1*Power LED indicator
1*SYS LED indicatorInterfaces 10*10/100/1000 Base-T Ethernet ports
2*1000 Base-X SFP portsTransmission media Recommended: CAT5/5e UTP or betterFan quantity N/ALevel of protection Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kVForwarding mode Store-and-forwardSwitch capacity 24GbpsPacket forwarding rate 17.90MppsBuffer 12MbMAC address table 16KJumbo frame 10KPoE power supply management N/APoE budget N/AInput voltage 100-240V AC 50/60HzPower consumption Full load: ＜19W
Empty load: ＜9WDimension 294.0mmx179.6mmx44.0mmMounting Desktop mounting: support
Wall mounting: support
Rack mounting:non-supportEnergy Efficient SupportEnvironment Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensingCertification FCC、CE、RoHSL3 Features VLAN-based routing
IPv4 static routing adding
Supports static ARP adding/deleting
Supports ARP aging time configurationPoE power supply management N/ASecurity features ARP receiving limit
Unknown MAC address discard
DoS attack defense
802.1x security authentication
Radius security authenticationVLAN IEEE 802.1Q VLAN
VLAN Layer-3 interfaces
Supports three port modes: Access, Trunk and HybridDHCP Server DHCP Server
DHCP Relay
DHCP Snooping
Supports Option 82 policy configurationPort aggregation Static aggregation
LACP dynamic aggregationSpanning tree IEEE 802.1d STP (Spanning Tree Protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Supports edge port
Supports BPDU statisticsMulticast IGMP Snooping V1/V2/V3
Supports port fast leavePort Mirroring Supports N: 1 port mirroringQuality of Service SP (Strict Priority)
SWRR (Simple Weighted Round Robin)
WRR (Weighted Round Robin)
Supports 802.1p port trust mode
Supports DSCP port trust mode
Supports a maximum of 8-queue service quality mappingACL Supports MAC ACL and IP ACLLoading and upgrade Supports FTP/TFTP/HTTP upgrade
Supports configuration import and exportManagement and maintenance Supports Telnet
Supports SNMP V1/V2/V3
Supports WEB management and maintenance
Supports Ping/Tracert/Connection Detection
CPU Monitoring and memory monitoring
Local visualization management
