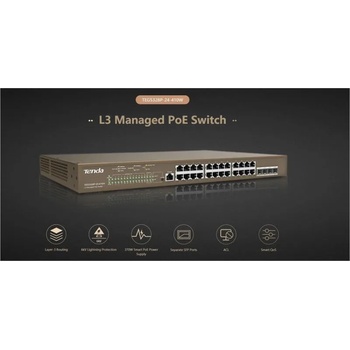

Tenda TEG5328P-24-410W

Model
TEG5328P-24-410W

Network standard
IEEE802.3、 IEEE802.3u、 IEEE802.3ab、 IEEE802.3z、 IEEE802.3x、 IEEE802.3af/at、 IEEE802.1p、IEEE802.1q、 IEEE802.1w、 IEEE802.1d、 IEEE802.1s

LED indicator
One Link/Act or PoE LED indicator for each port
One Link/One Link/Act mode converting LED indicator for each device
One PoE mode converting LED indicator for each device
One PoE Max LED indicator for each device
One Power LED indicator for each device
One SYS LED indicator for each device

Interface
24 x 10/100/1000 Base-T Ethernet ports
4 x 1000 Base-X SFP ports
1 x Console port

Fan Quantity
2

Level of protection
Lightning protection for ports: ≥6kV (common mode)
Lightning protection for power: ≥6kV (common mode), ≥4kV (differential mode)
ESD:
Air discharge: ±8kV
Contact discharge: ±6kV

Forwarding Mode
Store-and-forward

Switching Capacity
56Gbps

Packet Forwarding Rate
41.7Mpps

Buffer
12Mb

MAC Address Table
16K

Jumbo Frame
10K

PoE power supply
Support

PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 370W

Input Voltage
100-240V AC 50/60Hz

Power Consumption
Full load: ＜432W
Empty load: ＜23W

Dimension
440 mm x 284 mm x 44 mm(L*W*H)

Mounting options
Desktop mounting
Rack mounting (19" 1U)
Wall mounting

Energy Efficient
Support

Environment
Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%)RH, non-condensing
Storage humidity: (5% - 90%)RH, non-condensing

Certification
CCC、FCC、CE、RoHS

L3 Features
Supports VLAN-based routing
Supports IPv4 static routing
Supports static ARP

PoE Supply
Supports port PoE configuration and power supply with priority
Supports PoE over-temperature protection
Supports PoE scheduled management
Supports intelligent management and PoE-powered device detection
(port status, power assignment and PoE-powered device status)

Security features
ARP receiving limit
Unknown MAC address discard
DoS attack defense
802.1x security authentication
Radius authentication

VLAN
IEEE 802.1Q VLAN
VLAN Layer-3 interfaces
Supports three port modes: Access, Trunk and Hybrid

DHCP
DHCP Relay
DHCP Snooping
Supports Option 82 policy configuration

Port Aggregation
Static aggregation
LACP dynamic aggregation

Spanning tree
IEEE 802.1d STP (Spanning Tree Protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Supports edge port
Supports BPDU statistics

Multicast
IGMP Snooping V1/V2/V3
Supports port fast leave

Port Mirroring
Supports N: 1 port mirroring

QoS
SP (Strict Priority)
SWRR (Simple Weighted Round Robin)
WRR (Weighted Round Robin)
Supports 802.1p port trust mode
Supports DSCP port trust mode
Supports a maximum of 8 queue service quality mapping

ACL
Supports MAC ACL and IP ACL

Loading and upgrade
Supports FTP/TFTP/HTTP upgrade
Supports configuration import and export

Management and maintenance
Supports Telnet, Console
Supports SNMP V1/V2/V3
Supports WEB management and maintenance
Supports Ping/Tracert/Connection Detection
CPU Monitoring and memory monitoring
