Tenda W12

Tenda W12

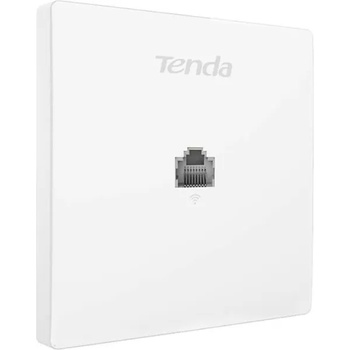

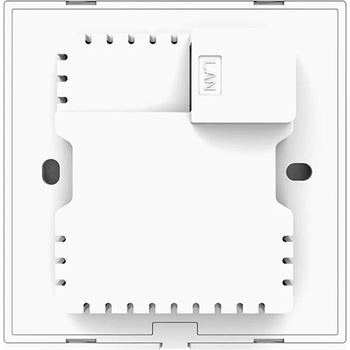

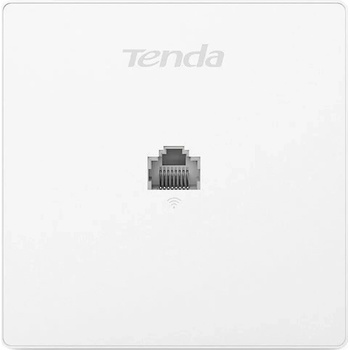

The AC1200 Dual Band Gigabit In-Wall Access Point (AP) is a Tenda high-performance wireless access point designed for hotel rooms, villas, large apartments, KTV compartments and other places. Compliant with IEEE 802.11ac protocol and Wave 2 standard, and featured with the MU-MIMO tech- nology, APs of this series support a dual-band concurrent wireless speed of up to 1167 Mbps.



Specifications:

Hardware

Dimension

86*86*32mm

Interfaces

1*10/100/1000Mbps PoE+Data Input LAN

1*10/100/1000Mbps Data Output LAN

Button

1*Reset

Antenna

4*4dBi

Maximum Power Consumption

7.8W

LED Indicator

SYS&LAN

Power Supply

PoE 802.3af

Wireless

Frequency Range

2.4GHz & 5GHz dual band

Maximum wireless speed

2.4GHz:300Mbps

5GHz:867Mbps

Standard&Protocol

IEEE 802.11b/g/n/ac(wave2)

Reception Sensitivity

11b 1Mbps -95dBm

11n MCS7 -73dBm

11a 6 Mbps -93dBm

11ac MCS7 -75dBm

Software

MU-MIMO

Support

Operating Mode

AP/Client+AP

Max. No. of SSID

2.4GHz: 8

5GHz: 4

Hide SSID

Support

WEP

Support

WPA-PSK

Support

WPA2-PSK

Support

WPA

Support

WPA2

Support

Access control

Support

Adjustable power transmit

Support

AP isolation

Support

Connected clients control

Support

RSSI Threshold

Support

WMM

Support

VLAN tagging for SSID

Support

LED control

Support

Diagnostics

Support

Schedule Reboot

Support

Reboot at specified interval

Support

System Logs

Support

Firmware upgrade

Support

Reboot

Support

Reset Button

Support

Backup configuration

Support

Restore configuration

Support

Centralized Management

M3 or Tenda Router with AP Controller feature

Others

Operation Temperature

-10℃ ~ 45℃

Storage Temperature

-30℃ ~ 70℃

Operating Humidity

10%~90% non-condensing

Storage Humidity

10%~90% non-condensing

Default login IP

192.168. 0.254

Certification

CE/RoHS
