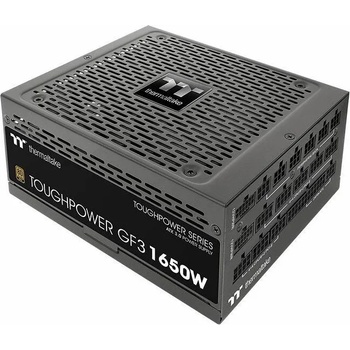

Thermaltake 1650W 80 PLUS Gold GF3 TT (PS-TPD-1650FNFAGE-4)



Thermaltake Toughpower GF3 1650W





Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel ‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards.

The wattage marked on 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of GF3 1650W can deliver up to 600W for PCIe 5.0 graphics cards.





Toughpower GF3 1650W Gold - TT Premium Edition

PCIe Gen 5.0 Ready! Designed with two native PCIe 12+4pin modular connectors, the Toughpower GF3 series is built for the next-gen PCIe 5.0 graphic cards and is compatible with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series comes in 1650W, 1350W, 1200W, 1000W, 850W and 750W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Toughpower GF3 1650W comes with 100% high quality Japanese capacitors and other premium components to help deliver continuous and stable power.









Fully Compatible With Intel PSDG ATX 3.0 Specifications

Toughpower GF3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards. The GF3 series can sustain up to 3x GPU power excursion and 2x total power excursion.









Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards has increased, so has their demand for power. The GF3 series is designed to support NVIDIA and AMD graphics cards, ready to supply the graphics card according to their different ways of connections.









PCIe Gen 5.0 Ready

Toughpower GF3 1650W Gold comes with two 16pin connectors to offer powerful and stable performance allowing the PSU to run next-generation GPUs naturally.







Specs:

Max. Output Capacity 1650WColor BlackDimension ( W / H / D ) 150mm(W) x 86mm(H) x 180mm(D)
 Peso 2.14 KG
 PFC (Power Factor Correction) Active PFCPower Good Signal 100-250 msecInput Current 20 – 16AInput Frequency Range 50-60HzInput Voltage 100 – 240V~Operating Temperature 0°C to + 50°COperating Humidity 20% to 90%, non-condensingStorage Temperature -40°C to + 70°C
 Storage Humidity 20% to 95%, non-condensingCooling system 14cm hydraulic bearing fanEfficiency 80 PLUS Gold at 115Vac input. MTBF 100,000 hrs minimumSafety Approval CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/B IS/KCC
 PCI-E 6+2pin 9PCIe 12+4pin 2
