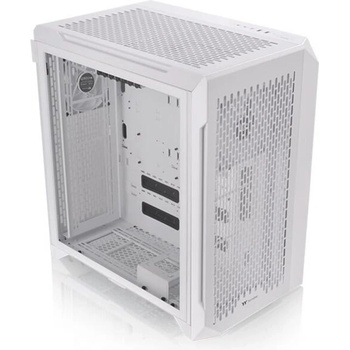

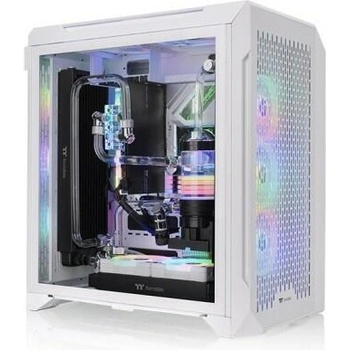

Thermaltake CTE C700 Air Snow (CA-1X7-00F6WN-00)



Thermaltake CTE C700 Air





CTE Form Factor

Designed by Thermaltake

The CTE Form Factor Designed by Thermaltake, stands for Centralized Thermal Efficiency, and is focused around providing high level thermal performance to critical components. The design utilizes a 90-degree rotation of the motherboard providing more efficient airflow pathways.

Since the CPU location has been moved much closer to the front panel and the graphics card moved closer towards the rear panel, independent cold air induction is given for thermal dissipation of the CPU and graphics card respectively. This overall approach has allowed CTE to provide better and more efficient intake airflow through the placement of main components and cooling, as well as optimization to heat extraction from the system.











Move Critical Heat Sources (CPU And Graphic Cards) Closer Towards Cool Air

Since the CPU location of the CTE C700 has been moved much closer to the front panel and the graphics card moved closer towards the rear panel, independent cold air induction is given for thermal dissipation of the CPU and graphics card respectively.











Active Cooling for More Efficient Intake Airflow

This overall approach has allowed CTE C700 to provide better and more efficient intake airflow through the placement of main components and cooling, as well as optimization to heat extraction from the system.











All Your Dream Cooling Components Can Fit!

The CTE C700 has enormous fan and cooler installation capacity: up to twelve 120mm fans (eleven140mm fans) and 360mm/420mm AIO coolers at the front and the rear. Moreover, equipped fan brackets at the front, rear, bottom and right side, and the installation spot at the top ensure easy installation of all your desired cooling components.











Blow Your World Away with Three Pre-installed 140mm CT140 Fans

CTE C700 Air mid tower Chassis features three 140mm PWM Fans at the front, top and rear. The CT140 fan are the best-performing case fans among all the case fans in Thermaltake's collection so far.











Perfect Dust Protection

There are fine removable filters at the top, front, bottom, rear and right side of the chassis to provide excellent protection against dust, and they are easily removable for cleaning.











Everything You Need Is Located In One Place

Two USB 3.0 ports, one USB 3.2 Gen 2 Type-C, and HD Audio ports are placed on the top panel to grant direct access when needed.









Specs:

Series CTECASE TYPE Mid TowerDimension (H x W x D) 566.5 x 327.6 x 505.5 mmNET WEIGHT 15.6 kgPANEL 4mm Tempered Glass x 1Color WhiteMATERIAL SPCC / ABSCOOLING SYSTEM Front(intake):
140 x 140 x 25 mm CT140 fan
(1500rpm, 30.5 dBA) x 1
Top(exhaust):
140 x 140 x 25 mm CT140 fan
(1500rpm, 30.5 dBA) x 1
Rear(intake):
140 x 140 x 25 mm CT140 fan
(1500rpm, 30.5 dBA) x 1Drive Bays 7 x 3.5 or 6 x 2.5EXPANSION SLOTS 7MOTHERBOARDS 6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX),
12 x 9.6 (ATX), 12 x 13 (E-ATX)I/O Port USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1PSU Standard PS2 PSU (optional)FAN SUPPORT Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
2 x 200mm, 1 x 200mm
Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right:
1 x 120mm, 1 x 140mm
Rear:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mmRADIATOR SUPPORT Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm
Rear:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm
Bottom:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mmCLEARANCE CPU cooler max height:
190mm
VGA max length:
327mm (With radiator)
410mm (Without radiator)
PSU max length:
220mm
