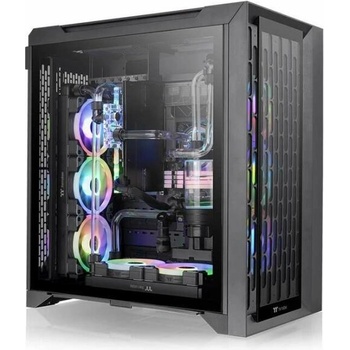

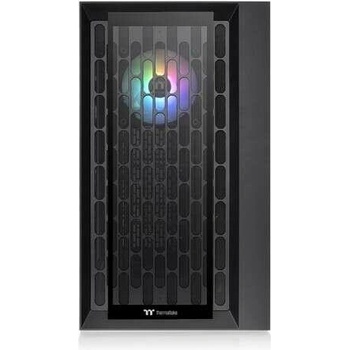

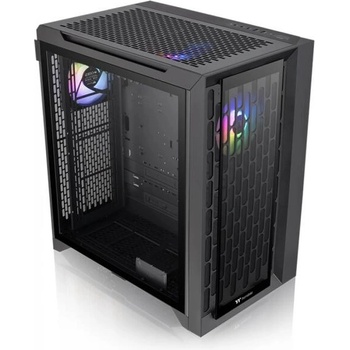

Thermaltake CTE C700 TG ARGB (CA-1X7-00F1WN-01)



Thermaltake CTE C700 TG ARGB







CTE Form Factor

Designed by Thermaltake

The CTE Form Factor Designed by Thermaltake, stands for Centralized Thermal Efficiency, and is focused around providing high level thermal performance to critical components. The design utilizes a 90-degree rotation of the motherboard providing more efficient airflow pathways.

Since the CPU location has been moved much closer to the front panel and the graphics card moved closer towards the rear panel, independent cold air induction is given for thermal dissipation of the CPU and graphics card respectively. This overall approach has allowed CTE to provide better and more efficient intake airflow through the placement of main components and cooling, as well as optimization to heat extraction from the system.











Move Critical Heat Sources (CPU And Graphic Cards) Closer Towards Cool Air

Since the CPU location of the CTE C700 has been moved much closer to the front panel and the graphics card moved closer towards the rear panel, independent cold air induction is given for thermal dissipation of the CPU and graphics card respectively.











Maximum Radiator Support

The CTE C700 offers multiple mounting locations and plenty of room to create your own configurations. DIY radiators up to 360mm in length can be installed on the front, rear and bottom, and for AIO compatibility, up to 420mm/360mm radiators can be installed on the front and rear, giving PC enthusiasts plenty of flexibility to create their ideal setup.











Display It Your Way

Equipped with two different PCI-E slots, CTE C700 TG ARGB gives you the option to display your graphics card either horizontally or vertically, creating plenty of flexible space for your system. If you choose to install your graphics card vertically, there is an extra riser cable bracket allows both 90 degree or 180 degree riser cable installation.











Everything You Need Is Located In One Place

Two USB 3.0 ports, one USB 3.2 Gen 2 Type-C, and HD Audio ports are placed on the top panel to grant direct access when needed.









Specs:

CASE TYPE Mid TowerDimension (H x W x D) 566.5 x 327.6 x 505.5 mmNET WEIGHT 15.6 kgPANEL 4mm Tempered Glass x 2Color BlackMATERIAL SPCC / ABSCOOLING SYSTEM Front(intake):
140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1
Top(exhaust):
140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1
Rear(intake):
140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1
 Drive Bays 7 x 3.5 or 6 x 2.5EXPANSION SLOTS 7MOTHERBOARDS 6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX),
12 x 9.6 (ATX), 12 x 13 (E-ATX)I/O Port USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1PSU Standard PS2 PSU (optional)FAN SUPPORT Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
2 x 200mm, 1 x 200mm
Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right:
1 x 120mm, 1 x 140mm
Rear:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mmRADIATOR SUPPORT Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm
Rear:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm
Bottom:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mmCLEARANCE CPU cooler max height:
190mm
VGA max length:
327mm (With radiator)
410mm (Without radiator)
PSU max length:
220mm
