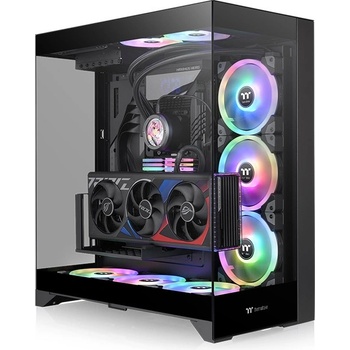

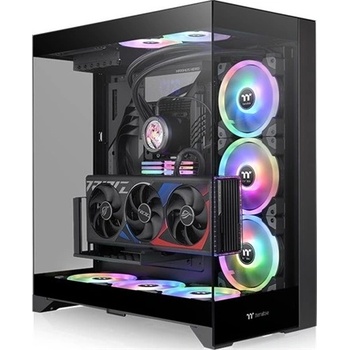

Thermaltake CTE E550 Black (CA-1Z8-00M1WN-00)

CTE E550 TG Mid Tower Chassis



Designed for an exceptional view, The CTE E550 TG is a dual chamber mid-tower chassis with three TG panels that allows users to display components in style. It supports the latest Hidden-Connector motherboards and offers a three-way GPU installation option, seamlessly blending aesthetics with compatibility.







Visual Perfection

The CTE E550 TG is a panoramic mid tower with tempered glass panels on the front, rear and left side. These crystal-clear panels offer an ultra-wide viewing angle normally only available with an open-frame chassis, providing an unparalleled visual display of your internal components.





Compati ble with Hidden-Connector Motherboards

Created for next-generation motherboards, the CTE E550 TG features a special design that enables support for both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.





Series CTECASE TYPE Mid TowerDimension (H x W x D) 558.5 x 270 x 513mm
(21.99 x 10.63 x 20.2 inch)NET WEIGHT 14.5 kg / 31.97 lbs. PANEL 4mm Tempered Glass x 3Color BlackMATERIAL SPCCCOOLING SYSTEM 3 x 3.5, 1 x 2.5 or 2 x 3.5, 2 x 2.5EXPANSION SLOTS 7MOTHERBOARDS 6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX),
12 x 9.6 (ATX), 12 x 10.5 (E-ATX)
 I/O Port USB 3.0 x 2, Type-c x1, HD Audio x 1PSU Standard PS2 PSU (optional)FAN SUPPORT Top:
2 x 120mm, 1 x 120mm
Right (M/B Side):
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm , 2x 140mm, 1 x 140mm
Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm , 2x 140mm, 1 x 140mm
 RADIATOR SUPPORT Top:
1 x 240mm, 1 x 120mm
Right (M/B Side):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Bottom (DIY only):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
 CLEARANCE CPU cooler max height: 166mm
VGA max length: 415mm (with radiator)
443.8mm (without radiator)
PSU max length: 220mm
