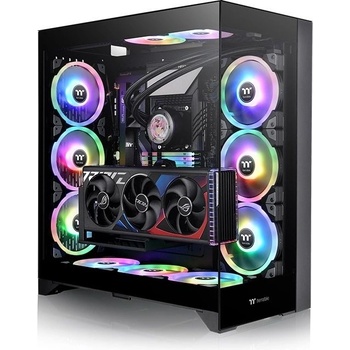

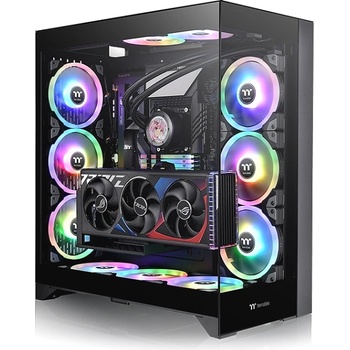

Thermaltake CTE E660 MX Black (CA-1Y3-00M1WN-01)

CTE E660 MX Mid Tower Chassis



The CTE E660 MX is a dual chamber mid-tower chassis that supports the latest Hidden-Connector motherboards, additionally it features a three-way GPU installation option and comes with an interchangeable dual front panel design that gives users maximum flexibility to customize their setup.



Dual Interchangeable Front Panels

With a 4mm tempered glass panel pre-installed on the left side, users can easily show off their interior configuration; on top of that, the CTE E660 MX offers two interchangeable front panels: a tempered glass panel and a perforated panel. The former for a great look and the latter for better airflow. Users have the flexibility to display their PC build the way they want.



PCI-e 4.0 Riser Cable and Floating GPU Bracket Included

A pre-configured 400mm PCI-e 4.0 riser cable makes it easy to achieve "floating GPU and Up Right Forward GPU placements. The riser cable complies with PCI-e 4.0 Standards, offering a 16GT/s transfer rate and supporting up to 64 GB/s (bi-directional) data transmission.





Series CTECASE TYPE Mid TowerDimension (H x W x D) 558.5 x 270 x 513mm
(21.99 x 10.63 x 20.2 inch)
 NET WEIGHT 15.85 kg / 34.94 lbs. PANEL 4mm Tempered Glass x 2Color BlackMATERIAL SPCCCOOLING SYSTEM -Drive Bays 3 x 3.5, 1 x 2.5 or 2 x 3.5, 2 x 2.5EXPANSION SLOTS 7MOTHERBOARDS 6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX),
12 x 9.6 (ATX), 12 x 10.5 (E-ATX)I/O Port USB 3.0 x 2, Type-c x1, HD Audio x 1PSU Standard PS2 PSU (optional)FAN SUPPORT Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm , 2x 140mm, 1 x 140mm
Top:
2 x 120mm, 1 x 120mm
Right (M/B Side):
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm , 2x 140mm, 1 x 140mm
Rear:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm , 2x 140mm, 1 x 140mm
Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm , 2x 140mm, 1 x 140mm
 RADIATOR SUPPORT Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Top:
1 x 240mm, 1 x 120mm
Right (M/B Side):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Rear:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Bottom (DIY only):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mmCLEARANCE CPU cooler max height:
166mm
VGA max length:
415mm (with radiator)
443.8mm (without radiator)
PSU max length:
220mm
